OEM#: 6K872New OEM Original Outright

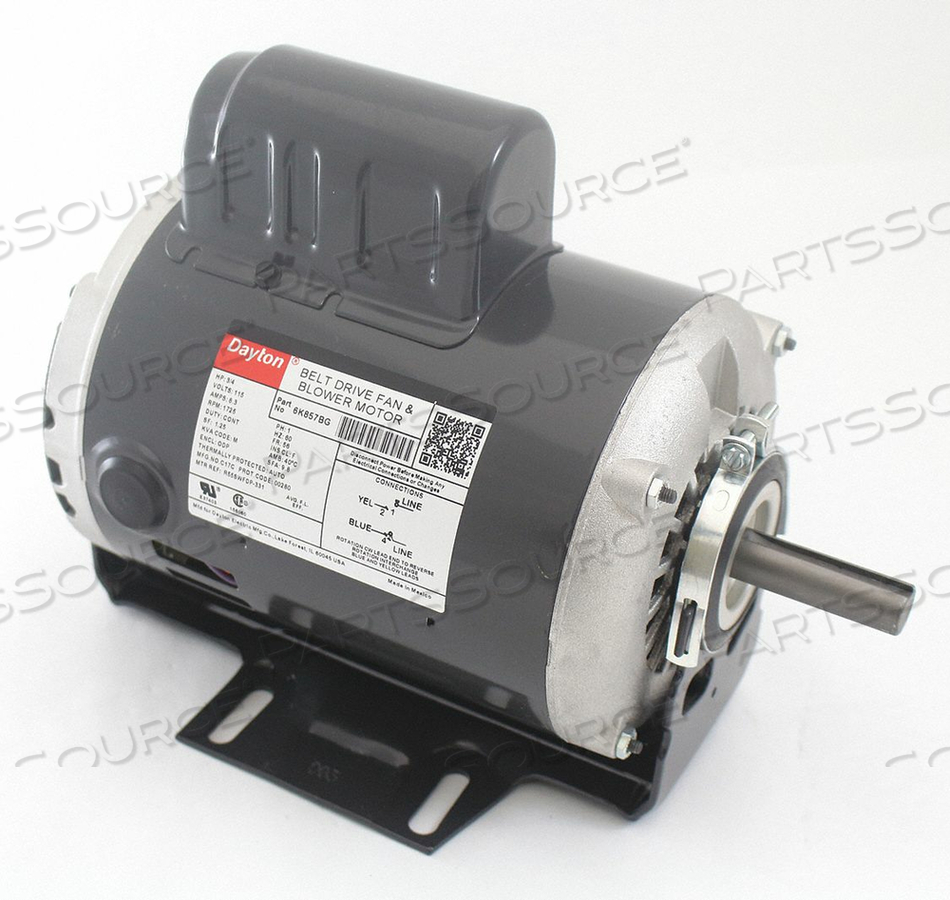

BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115V AC, 5.3 A FULL LOAD AMP by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$347.72 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO6k872
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115V AC, 5.3 A FULL LOAD AMP by DAYTON ELECTRIC MANUFACTURING CO
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115V AC, 5.3 A FULL LOAD AMP by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 6K872
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115V AC, 5.3 A FULL LOAD AMP by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$347.72 each

BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115V AC, 5.3 A FULL LOAD AMPS, 56Z FRAME, 60 HZ HZ, MOTOR SERVICE FACTOR 1.25, MOTOR THERMAL PROTECTION AUTO, INS. CLASS B, MAX. AMBIENT TEMP. 104 DEGREES F, DUTY CYCLE CONTINUOUS, MOTOR SHAFT ROTATION CW/CCW, MOTOR ENCLOSURE DESIGN OPEN DRIPPROOF, MOTOR MOUNTING TYPE CRADLE BASE, MOTOR MOUNTING POSITION ALL ANGLE, MOTOR FRAME MATERIAL

Ready to ship
Asset Information
warning

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.

Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 6K872 Key Specs
Item
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115V AC, 5.3 A FULL LOAD AMP
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
6K872
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
6-1/2 in
Duty
Continuous
Frame
56Z
Full Load Amps
5.3
HP
1/2
Hz
60
Ins. Class
B
Length Less Shaft
9-1/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Split-Phase Start/Capacitor-Run
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1.25
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Belt Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Pattern
4-1/8 in x 4-1/8 in
Nameplate RPM
1725
Nominal Efficiency
76.7 %
Number of Speeds
1
Overall Length
10-9/16 in
Phase
1
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
8-3/4 in
Shaft Diameter
1/2 in
Shaft Length
1-1/2 in
Standards
CSA Certified (258501), UL Recognized (E37403)
Voltage
115
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240
