OEM#: 6K870New OEM Original Outright

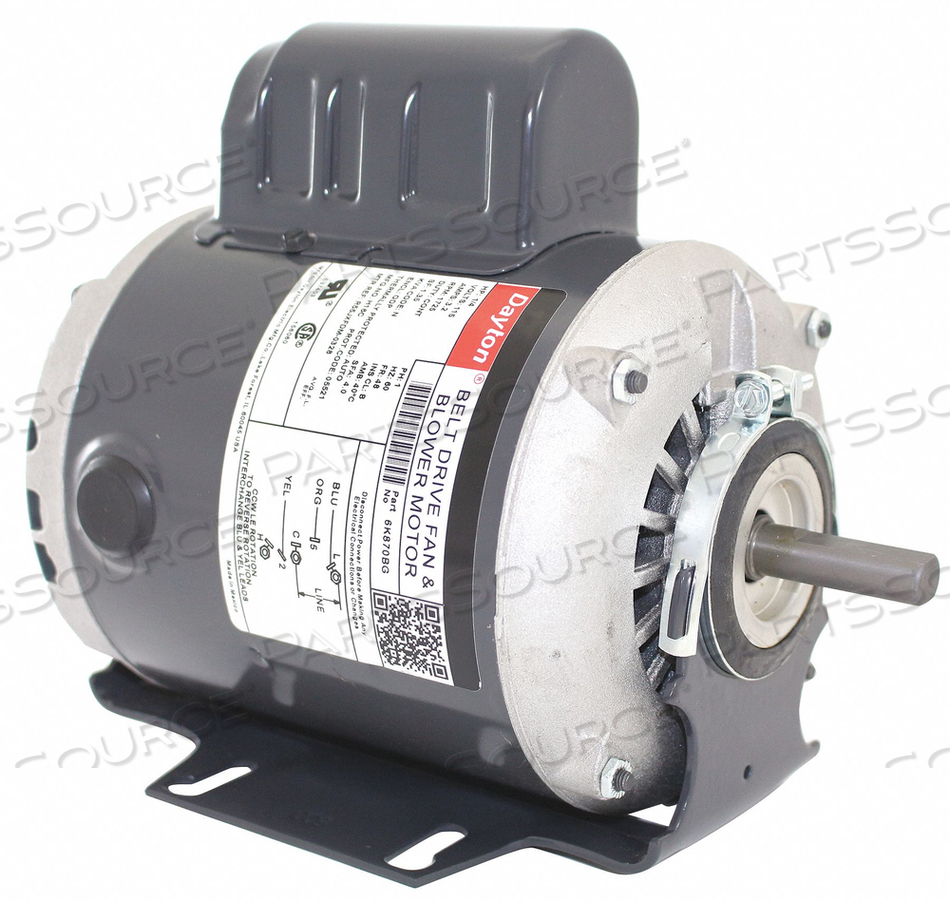

MOTOR 1/4 HP SPLIT PH 1725 RPM 115 V by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$407.16 each
OEM#: 6K870MOTOR 1/4 HP SPLIT PH 1725 RPM 115 V by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$407.16 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 6K870 Key Specs
Item
MOTOR 1/4 HP SPLIT PH 1725 RPM 115 V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
6K870
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
5-5/8 in
Duty
Continuous
Frame
48
Full Load Amps
3.2
HP
1/4 in
Hz
60
Ins. Class
B
Length Less Shaft
7-29/32 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1.35
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Belt Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1725
Nominal Efficiency
64.9 %
Number of Speeds
1
Overall Length
9-13/32 in
Phase
1
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
7-11/32 in
Shaft Diameter
1/2 in
Shaft Length
1-1/2 in
Standards
CSA Certified (258501), UL Recognized (E37403)
Voltage
115
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240
