OEM#: 6WY46New OEM Original Outright

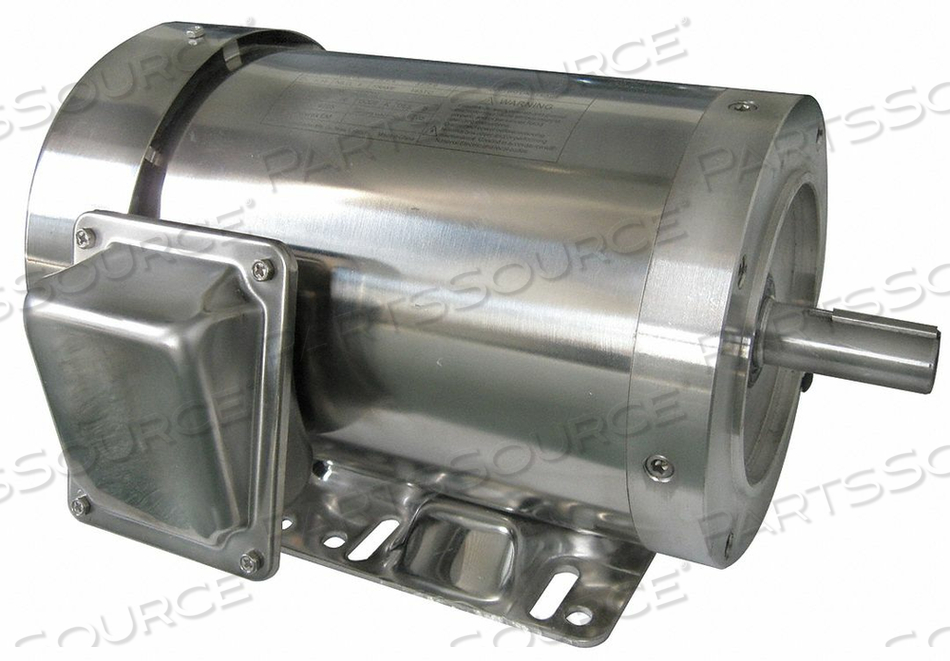

WASHDOWN MOTOR 2 HP 1750 56HC 230/460V by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$1,078.47 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO6WY46
WASHDOWN MOTOR 2 HP 1750 56HC 230/460V by DAYTON ELECTRIC MANUFACTURING CO
WASHDOWN MOTOR 2 HP 1750 56HC 230/460V by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 6WY46
WASHDOWN MOTOR 2 HP 1750 56HC 230/460V by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$1,078.47 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 6WY46 Key Specs
Item
WASHDOWN MOTOR 2 HP 1750 56HC 230/460V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
6WY46
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC082A
Country of Origin
China
Drain Plugs
4 Condensate Drains (at 3, 6, 9 and 12 O'clock) Plus 2 T-drains (1 Pre-installed Opposite Shaft End in 6 O'clock Position, the Other Loose in the Carton for Customer Installation at Low Point of Motor)
Duty
Continuous
Endshields
300 Series Stainless Steel
Frame
56HC
Full Load Amps
6/3
HP
2
Hz
60
Ins. Class
F
Max Ambient Temperature
40 Degrees C
Motor Application
Washdown
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Stainless Steel
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1750
Nominal Efficiency
86.5 %
Overall Length
13-1/4 in
Phase
3
RPM Range
1701-1800
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Shaft Material
300 Series Stainless Steel
Standards
CE Compliant, CSA Certified, UL Component Recognized
Voltage
230/460
Voltage Compatibility
208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
