OEM#: 6K477New OEM Original Outright

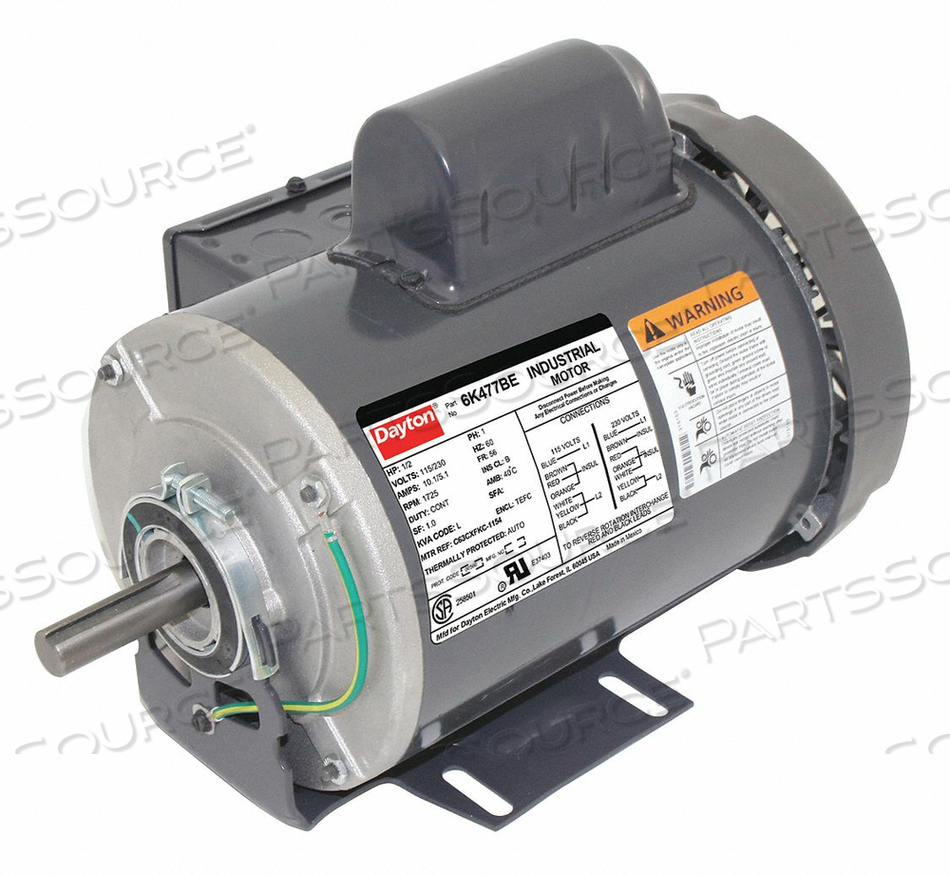

GP MTR CS TEFC 1/2 HP 1725 RPM 56 by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$375.61 each
OEM#: 6K477GP MTR CS TEFC 1/2 HP 1725 RPM 56 by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$375.61 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 6K477 Key Specs
Item
GP MTR CS TEFC 1/2 HP 1725 RPM 56
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
6K477
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
56
Full Load Amps
10.1/5.1
HP
1/2
Hz
60
Ins. Class
B
Length Less Shaft
10-3/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Type
Cradle Base
Motor Service Factor
1
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
Auto
Nameplate RPM
1725
Nominal Efficiency
60.3 %
Number of Speeds
1
Overall Length
12-5/16 in
Phase
1
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA (156060), UL (E37403)
Voltage
115/230
