OEM#: 6K177New OEM Original Outright

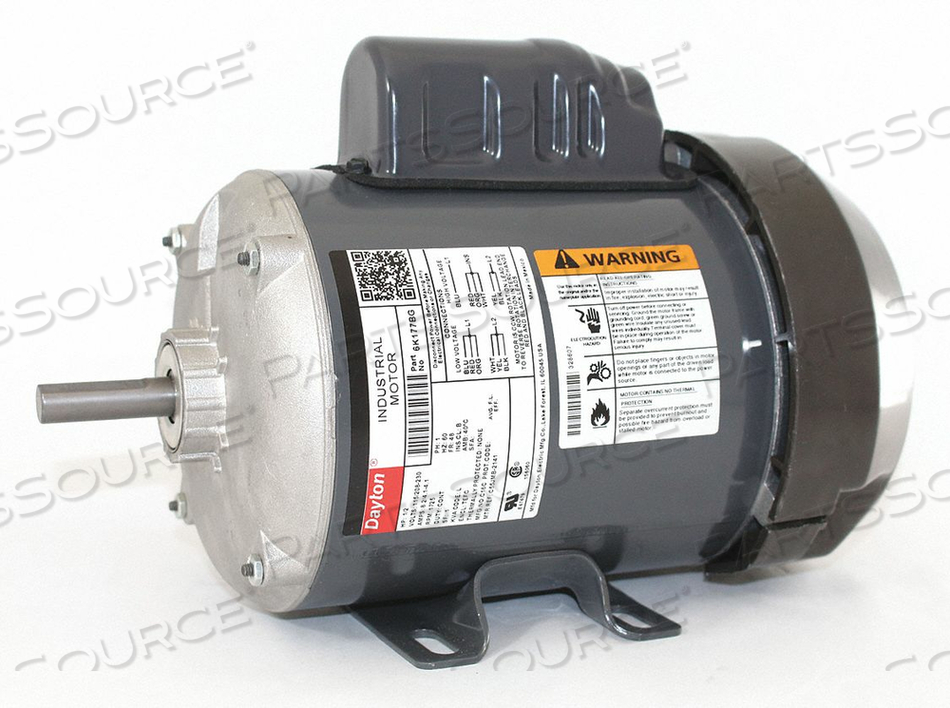

GENERAL PURPOSE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V AC, FU by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$479.05 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO6K177
GENERAL PURPOSE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V AC, FU by DAYTON ELECTRIC MANUFACTURING CO
GENERAL PURPOSE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V AC, FU by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 6K177
GENERAL PURPOSE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V AC, FU by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$479.05 each

GENERAL PURPOSE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V AC, FULL LOAD AMPS 8.2/4.1-4.1 A, 48 FRAME, HZ 60 HZ, MOTOR SERVICE FACTOR 1, MAX. AMBIENT TEMP. 104 DEGREES F, MOTOR THERMAL PROTECTION NONE, DUTY CYCLE CONTINUOUS, INS. CLASS B, MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED FAN-COOLED, MOTOR SHAFT ROTATION CW/CCW, MOTOR MOUNTING TYPE RIGID BASE, MOTOR MOUNTING POSITION

Ready to ship
Asset Information
warning

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.

Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 6K177 Key Specs
Item
GENERAL PURPOSE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V AC, FU
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
6K177
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Duty
Continuous
Frame
48
Full Load Amps
8.2/4.1-4.1
HP
1/2
Hz
60
Ins. Class
B
Length Less Shaft
9-15/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1725
Nominal Efficiency
62.3 %
Number of Speeds
1
Overall Length
11 in
Phase
1
Shaft Diameter
1/2 in
Shaft Length
1-1/2 in
Standards
CSA Certified (258501), UL Component Recognized (E47479)
Voltage
115/208-230
