OEM#: 6GC93BGNew OEM Original Outright

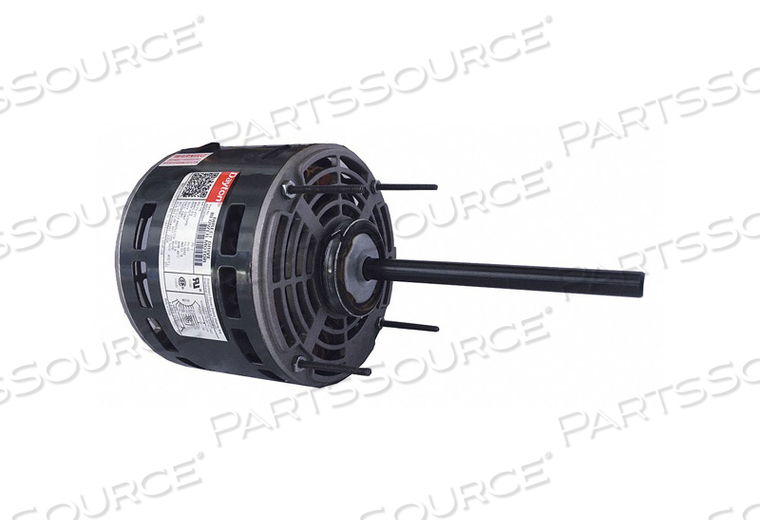

MOTOR 1/6HP D/D BLOWER by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$201.04 each
OEM#: 6GC93BGMOTOR 1/6HP D/D BLOWER by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$201.04 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 6GC93BG Key Specs
Item
MOTOR 1/6HP D/D BLOWER
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
6GC93BG
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Air Conditioners and many other Shaft-mounted Fan and Blower Uses, Direct-drive Furnace Blowers, Unit Heaters
Body Diameter
5-5/8 in
Bolt Circle Diameter
5-1/8 in
Capacitor Required
2MDV3
Duty
Continuous
Frame
48YZ
Full Load Amps
0.9
HP
1/6
Hz
60
Includes
Split Rings to Increase Ring Diameter to 2 1/2 in
Ins. Class
B
Length Less Shaft
5-3/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Sleeve
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Position
All Angle
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Nameplate RPM
1075
Nominal Efficiency
54.6 %
Number of Speeds
3
Overall Length
11-3/16 in
Phase
1
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
4-3/4 in
Shaft Diameter
1/2 in
Shaft Length
6 in
Standards
CSA Certified (258501), UL Recognized (E37403)
Voltage
277
Voltage Compatibility
208-230/277, 265, 277, 277/230
