OEM#: 6ALF1New OEM Original Outright

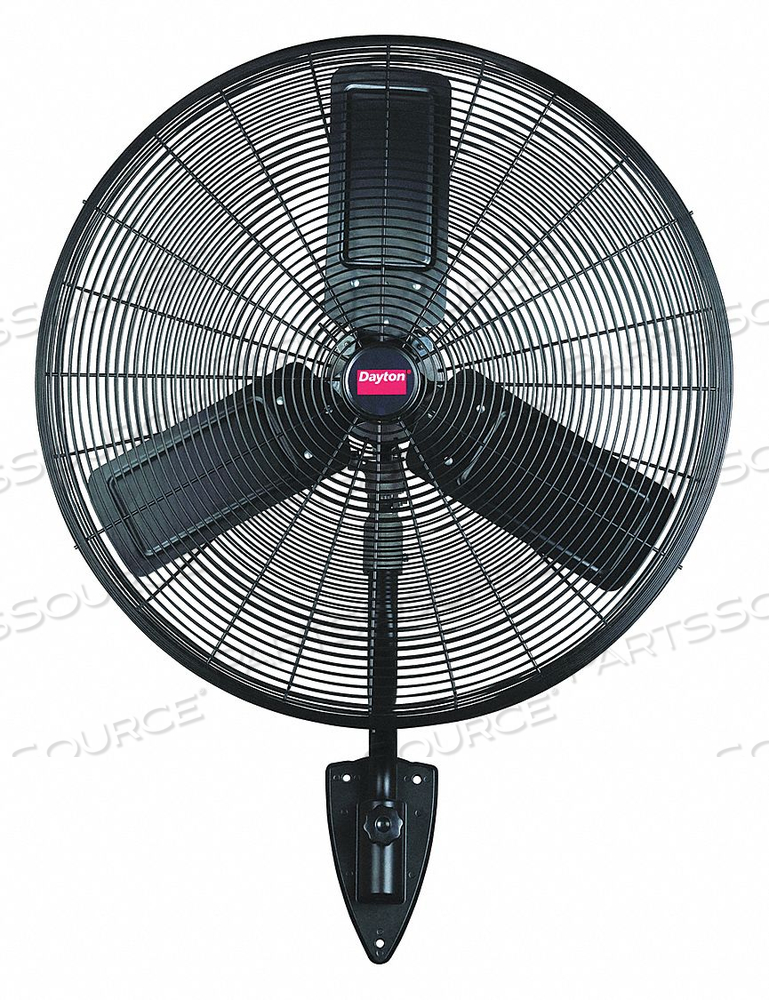

WALL MOUNTED OSCILLATING FAN 30 by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$498.19 each
OEM#: 6ALF1WALL MOUNTED OSCILLATING FAN 30 by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$498.19 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 6ALF1 Key Specs
Item
WALL MOUNTED OSCILLATING FAN 30
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
6ALF1
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Air Flow
7,260/8,200 cfm
Air Velocity @ 10 Ft.
994/817 fpm
Air Velocity @ 20 Ft.
610/525 fpm
Air Velocity @ 40 Ft.
261/180 fpm
Amps
4.2/3.5
Assembly
Assembly Required
Bearing Type
Ball
Blade Diameter
30 in
Blade Material
Aluminum
Color
Black
Depth
23 1/4 in
Drive Type
Direct Drive
Environmental Applications
Industrial
Fan Cord Length
10 ft
Fan Housing Material
Steel
Fan Mounting Location
Wall
Guard Material
Steel
Height
43 in
Height Adjustment
Fixed Height
Hz
60 Hz
Includes
Mounting Hardware, Secondary Safety Support Cable, Wall Bracket
Max. Ambient Temp.
104 Degrees F
Motor Enclosure
Totally Enclosed Air-Over
Motor HP
1/2 hp
Motor Insulation
Class B
Motor Type
Permanent Split Capacitor
NEMA Plug Configuration
5-15P
Number of Blades
3
Number of Conductors
3
Number of Speeds
2
Oscillation
Oscillating
Phase
1
RPM
1100/850
Shaft Dia.
5/8 in
Sound Level
77 dBA
Standards
cULus Listed
Thermal Protection
Automatic Reset
Voltage
115V AC
Watts
450/369
Wheeled Base
Stationary
Width
33 in
Wire Guard Finish
Polyester Powder Coated Black
