OEM#: 6ALF0New OEM Original Outright

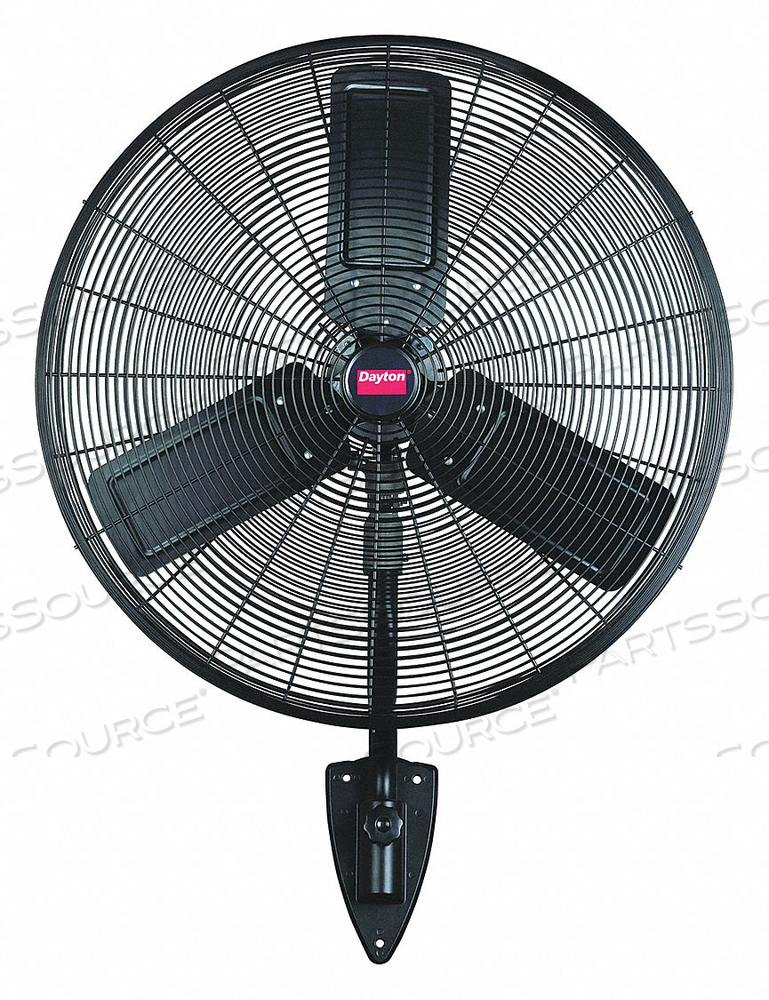

LIGHT DTY INDSTRL FAN 24 BLDE DIA 2SPD by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$460.27 each
OEM#: 6ALF0LIGHT DTY INDSTRL FAN 24 BLDE DIA 2SPD by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$460.27 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 6ALF0 Key Specs
Item
LIGHT DTY INDSTRL FAN 24 BLDE DIA 2SPD
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
6ALF0
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Air Velocity @ 10 ft
800/480 fpm
Air Velocity @ 20 ft
440/285 fpm
Air Velocity @ 40 ft
150/100 fpm
Airflow
3,510/6,400 cfm
Amps
2.8/2.1
Approvals, Certifications & Standards
cULus Listed
Assembly
Assembly Required
Bearing Type
Ball
Blade Diameter
24 in
Blade Material
Aluminum
Color
Black
Depth
23 7/8 in
Drive Type
Direct Drive
Environmental Applications
Industrial
Fan Cord Length
10 ft
Fan Housing Material
Steel
Fan Mounting Location
Wall
Guard Material
Steel
Height
40 1/2 in
Height Adjustment
Fixed Height
Hz
60 Hz
Includes
Mounting Hardware, Secondary Safety Support Cable, Wall Bracket
Maximum Ambient Temperature
104 Degrees F
Motor Enclosure
Totally Enclosed Air-Over
Motor Horsepower
1/4 hp
Motor Insulation
Class B
Motor Type
Permanent Split Capacitor
NEMA Plug Configuration
5-15P
Number of Blades
3
Number of Conductors
3
Number of Speeds
2
Oscillation
Oscillating
Phase
1
RPM
1100/850
Shaft Diameter
1/2 in
Sound Level
74 dBA
Thermal Protection
Automatic Reset
Voltage
115V AC
Watts
300/220
Wheeled Base
Stationary
Width
27 in
Wire Guard Finish
Polyester Powder Coated Black
