OEM#: 5RHT9New OEM Original Outright

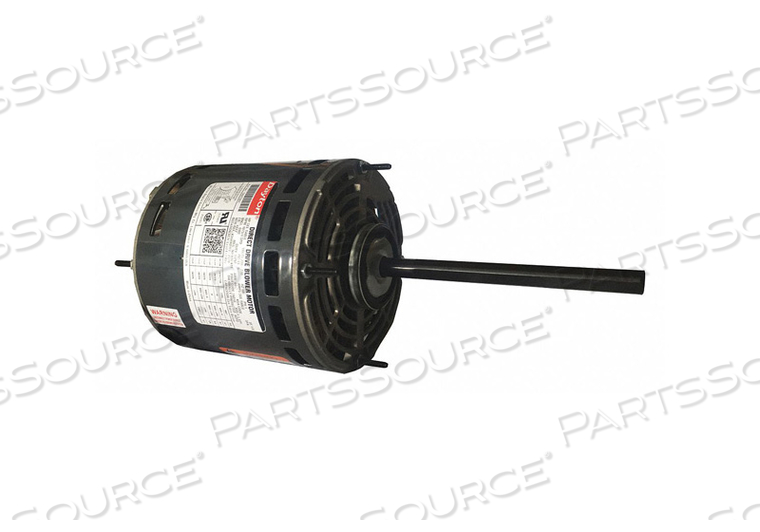

DIRECT DRIVE BLOWER MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 3/4 TO 1/5 HP, NAMEPLATE RPM 1,075, NO. OF SPEEDS 4, VOLTAG by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$322.62 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO5rht9
DIRECT DRIVE BLOWER MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 3/4 TO 1/5 HP, NAMEPLATE RPM 1,075, NO. OF SPEEDS 4, VOLTAG by DAYTON ELECTRIC MANUFACTURING CO
DIRECT DRIVE BLOWER MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 3/4 TO 1/5 HP, NAMEPLATE RPM 1,075, NO. OF SPEEDS 4, VOLTAG by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 5RHT9
DIRECT DRIVE BLOWER MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 3/4 TO 1/5 HP, NAMEPLATE RPM 1,075, NO. OF SPEEDS 4, VOLTAG by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$322.62 each

DIRECT DRIVE BLOWER MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 3/4 TO 1/5 HP, NAMEPLATE RPM 1,075, NO. OF SPEEDS 4, VOLTAGE 208-230V AC, FULL LOAD AMPS 4.1-1.7 A, 48YZ FRAME, MOTOR THERMAL PROTECTION AUTO, 60 HZ HZ, MOTOR SERVICE FACTOR 1, INS. CLASS B, MOTOR SHAFT ROTATION CW/CCW, MAX. AMBIENT TEMP. 60 DEGREES C, DUTY CYCLE CONTINUOUS, LEAD LENGTH 36 IN, MOTOR ENCLOSURE DESIGN OPEN AIR-OVER, MOTOR MOUNTING TYPE RING/STUD, MOTOR

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 5RHT9 Key Specs
Item
DIRECT DRIVE BLOWER MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 3/4 TO 1/5 HP, NAMEPLATE RPM 1,075, NO. OF SPEEDS 4, VOLTAG
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
5RHT9
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Blowers, Fans and Air Circulators
Body Diameter
5-5/8 in
Bolt Circle Diameter
5-1/8 in
Capacitor Required
2MDV6, 2MDV7
Country of Origin
China
Duty
Continuous
Frame
48YZ
Full Load Amps
4.1-1.7
HP
3/4 to 1/5
Hz
60
Includes
Split Rings to Increase Ring Diameter to 2 1/2 in
Ins. Class
B
Length Less Shaft
6-1/4 in
Max Ambient Temperature
60 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Position
All Angle
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Double-Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1075
Nominal Efficiency
64.7 %
Number of Speeds
4
Overall Length
12-11/16 in
Phase
1
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
6-1/4 in
Shaft Diameter
1/2 in
Shaft Length
6 in
Standards
CSA Certified (258501), UL Recognized (E37403)
Voltage
208-230
Voltage Compatibility
115/208-230, 208-230, 208-240
