OEM#: 5K654New OEM Original Outright

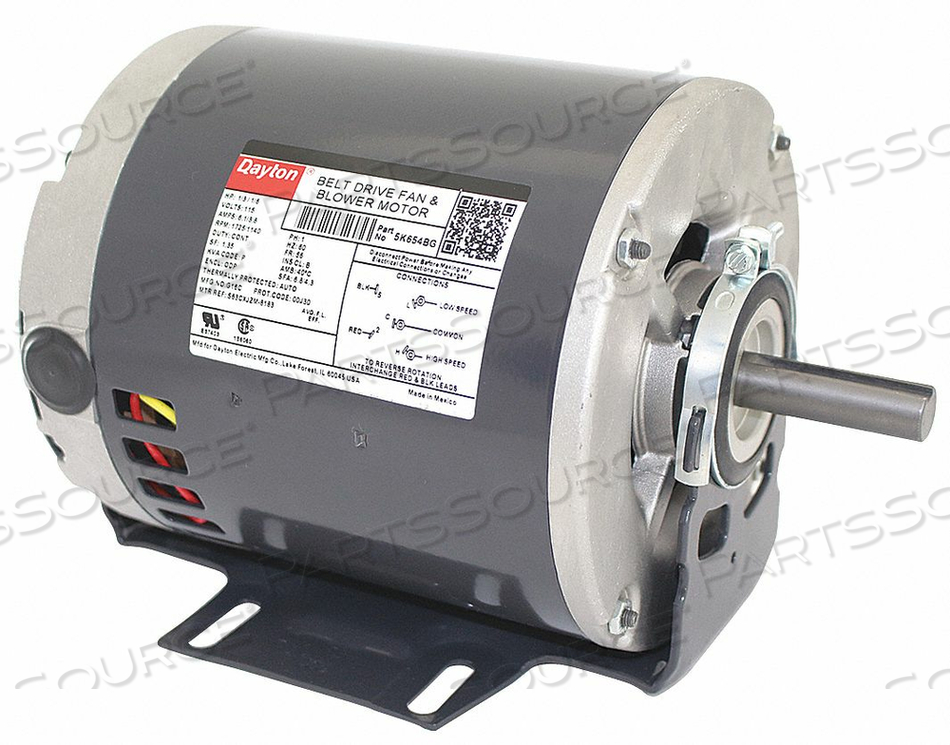

BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 1/3, 1/6 HP, NAMEPLATE RPM 1,725/1,140, NO. OF SPEEDS 2, VOLTAGE 115V AC, 6.1/3.8 by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$617.07 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO5k654
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 1/3, 1/6 HP, NAMEPLATE RPM 1,725/1,140, NO. OF SPEEDS 2, VOLTAGE 115V AC, 6.1/3.8 by DAYTON ELECTRIC MANUFACTURING CO
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 1/3, 1/6 HP, NAMEPLATE RPM 1,725/1,140, NO. OF SPEEDS 2, VOLTAGE 115V AC, 6.1/3.8 by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 5K654
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 1/3, 1/6 HP, NAMEPLATE RPM 1,725/1,140, NO. OF SPEEDS 2, VOLTAGE 115V AC, 6.1/3.8 by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$617.07 each

BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 1/3, 1/6 HP, NAMEPLATE RPM 1,725/1,140, NO. OF SPEEDS 2, VOLTAGE 115V AC, 6.1/3.8 A FULL LOAD AMPS, 56 FRAME, 60 HZ HZ, MOTOR SERVICE FACTOR 1.35, MOTOR THERMAL PROTECTION AUTO, INS. CLASS B, MAX. AMBIENT TEMP. 104 DEGREES F, DUTY CYCLE CONTINUOUS, MOTOR SHAFT ROTATION CW/CCW, MOTOR ENCLOSURE DESIGN OPEN DRIPPROOF, MOTOR MOUNTING TYPE CRADLE BASE, MOTOR MOUNTING POSITION ALL ANGLE, MOTOR F

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 5K654 Key Specs
Item
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 1/3, 1/6 HP, NAMEPLATE RPM 1,725/1,140, NO. OF SPEEDS 2, VOLTAGE 115V AC, 6.1/3.8
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
5K654
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
6-7/16 in
Country of Origin
Mexico
Duty
Continuous
Frame
56
Full Load Amps
6.1/3.8
HP
1/6, 1/3
Hz
60
Includes
3/16 x 3/16 x 1 1/4 in Shaft Key
Ins. Class
B
Length Less Shaft
8-7/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1.35
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Belt Drive Fan/Blower
Motor Thermal Protection
Auto
Nameplate RPM
1725/1140
Nominal Efficiency
61.4 %
Number of Speeds
2
Overall Length
10-5/16 in
Phase
1
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
7-15/16 in
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA Certified (258501), UL Recognized (E37403)
Voltage
115
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240
