OEM#: 5K261New OEM Original Outright

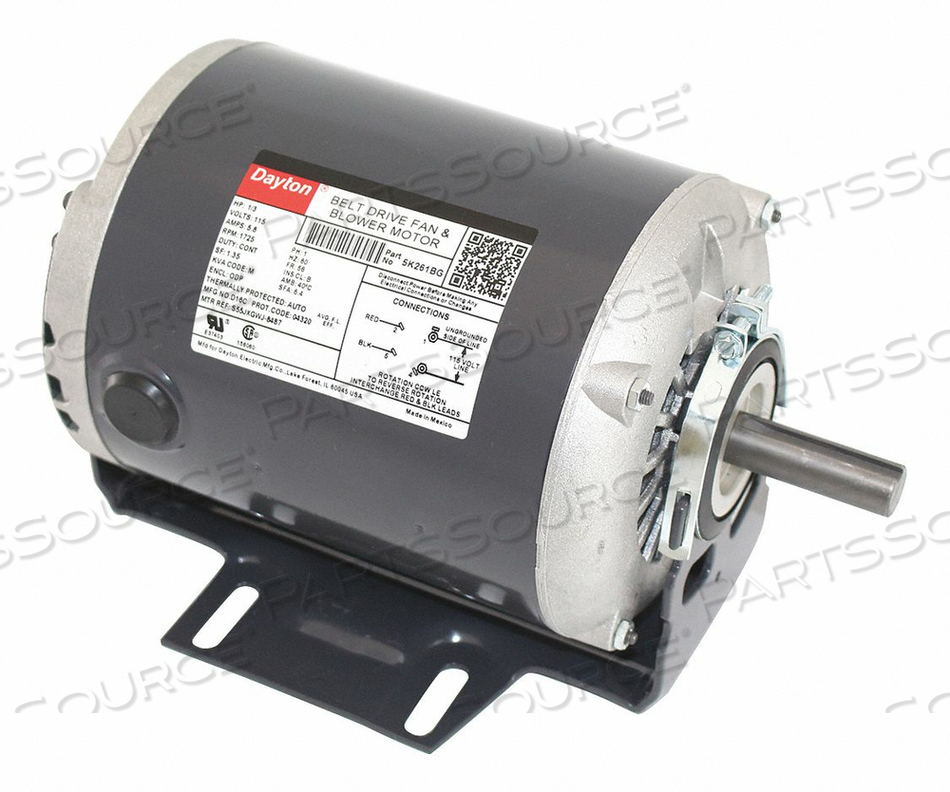

MOTOR 1/3 HP SPLIT PH 1725 RPM 115 V by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$349.12 each
OEM#: 5K261MOTOR 1/3 HP SPLIT PH 1725 RPM 115 V by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$349.12 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 5K261 Key Specs
Item
MOTOR 1/3 HP SPLIT PH 1725 RPM 115 V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
5K261
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
5-5/8 in
Duty
Continuous
Frame
56
Full Load Amps
5.8
HP
1/3
Hz
60
Includes
Shaft Key
Ins. Class
B
Length Less Shaft
8-3/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1.35
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Belt Drive Fan/Blower
Motor Thermal Protection
Auto
Nameplate RPM
1725
Nominal Efficiency
65 %
Number of Speeds
1
Overall Length
10-1/4 in
Phase
1
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
7-5/8 in
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
UL Component Recognition (E37403) and CSA Certification (258501)
Voltage
115
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240
