OEM#: 5JKW9New OEM Original Outright

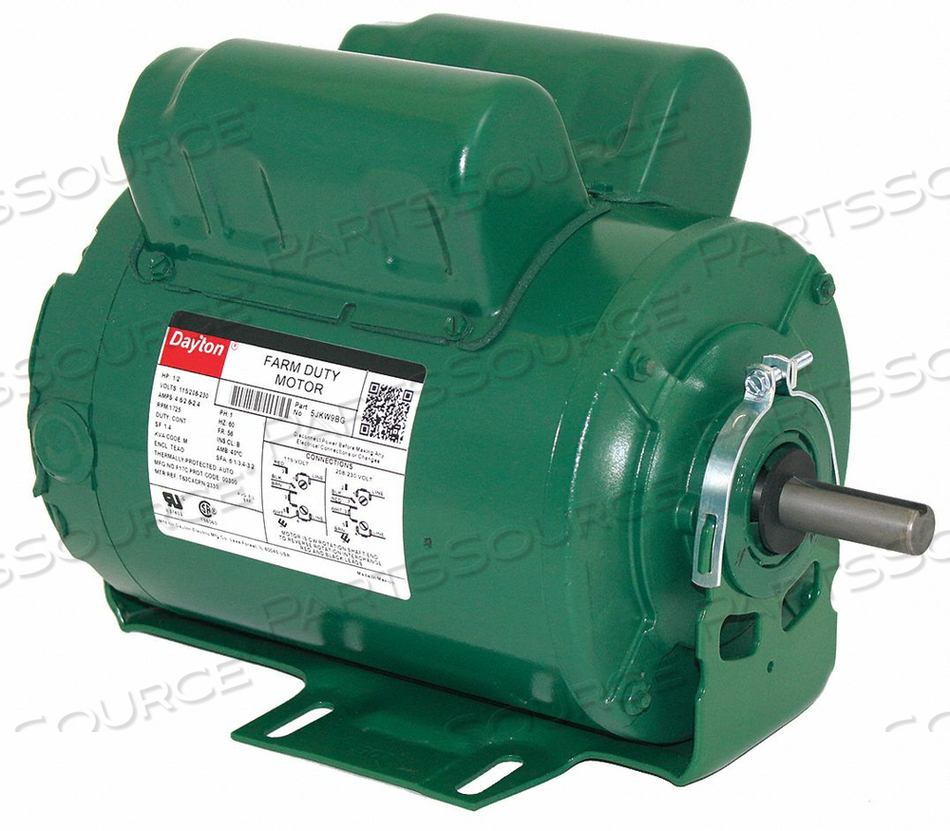

AGRICULTURAL FAN MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START/RUN, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V A by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$688.88 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO5jkw9
AGRICULTURAL FAN MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START/RUN, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V A by DAYTON ELECTRIC MANUFACTURING CO
AGRICULTURAL FAN MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START/RUN, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V A by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 5JKW9
AGRICULTURAL FAN MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START/RUN, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V A by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$688.88 each

AGRICULTURAL FAN MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START/RUN, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V AC, FULL LOAD AMPS 4.6/2.6-2.4 A, 56 FRAME, 60 HZ HZ, MOTOR SERVICE FACTOR 1.4, MOTOR THERMAL PROTECTION AUTO, INS. CLASS B, MAX. AMBIENT TEMP. 40 DEGREES C, DUTY CYCLE CONTINUOUS, MOTOR SHAFT ROTATION CW/CCW, MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED AIR-OVER, MOTOR MOUNTING TYPE CRADLE BASE, MOTOR MOUNTING POS

Ready to ship
Asset Information
warning

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.

Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 5JKW9 Key Specs
Item
AGRICULTURAL FAN MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START/RUN, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V A
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
5JKW9
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Capacitor Required
Included
Country of Origin
Mexico
Duty
Continuous Air Over
Finish
Epoxy
Frame
56
Full Load Amps
4.6/2.6-2.4
HP
1/2
Hz
60
Includes
Gasketed Terminal Acces Cover, Shaft Key and Shaft Slinger
Ins. Class
B
Item - Farm Duty Motors
Agricultural Fan Motor
Length Less Shaft
9-15/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
Farm Duty
Motor Bearings
Ball
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Cradle Base
Motor Service Factor
1.4
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Poultry/Livestock Belt Drive Fan
Motor Thermal Protection
Auto
Nameplate RPM
1725
Nominal Efficiency
80.5 %
Overall Length
11-13/16 in
Phase
1
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA Certified (258501), UL Recognized (E37403)
Voltage
115/208-230
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
