OEM#: 5GD67New OEM Original Outright

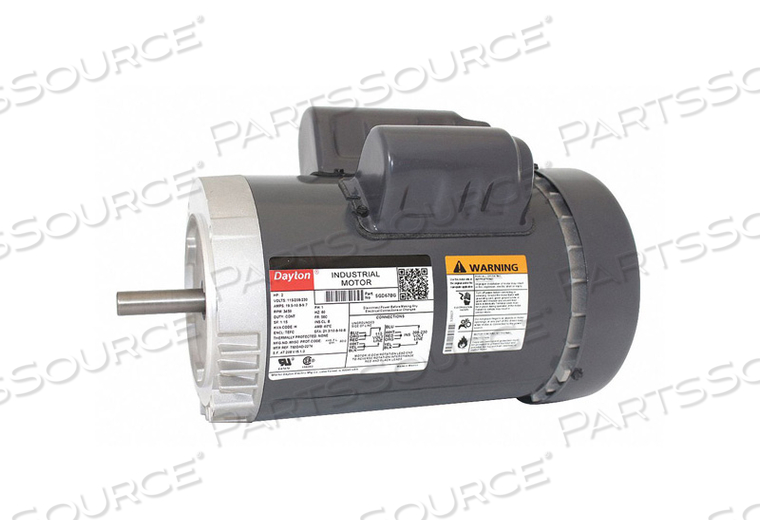

GP MTR CS-CR TEFC 2 HP 3450 RPM 56C by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$695.97 each
OEM#: 5GD67GP MTR CS-CR TEFC 2 HP 3450 RPM 56C by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$695.97 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 5GD67 Key Specs
Item
GP MTR CS-CR TEFC 2 HP 3450 RPM 56C
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
5GD67
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
56C
Full Load Amps
19.5/10.8-9.7
HP
2
Hz
60
Includes
Conduit Box
Ins. Class
B
Length Less Shaft
11-1/2 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start/Run
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Face
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3450
Nominal Efficiency
80 %
Number of Speeds
1
Overall Length
13-3/8 in
Phase
1
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA Certified (258501), UL Recognized (E47479)
Voltage
115/208-230
