OEM#: 5C040New OEM Original Outright

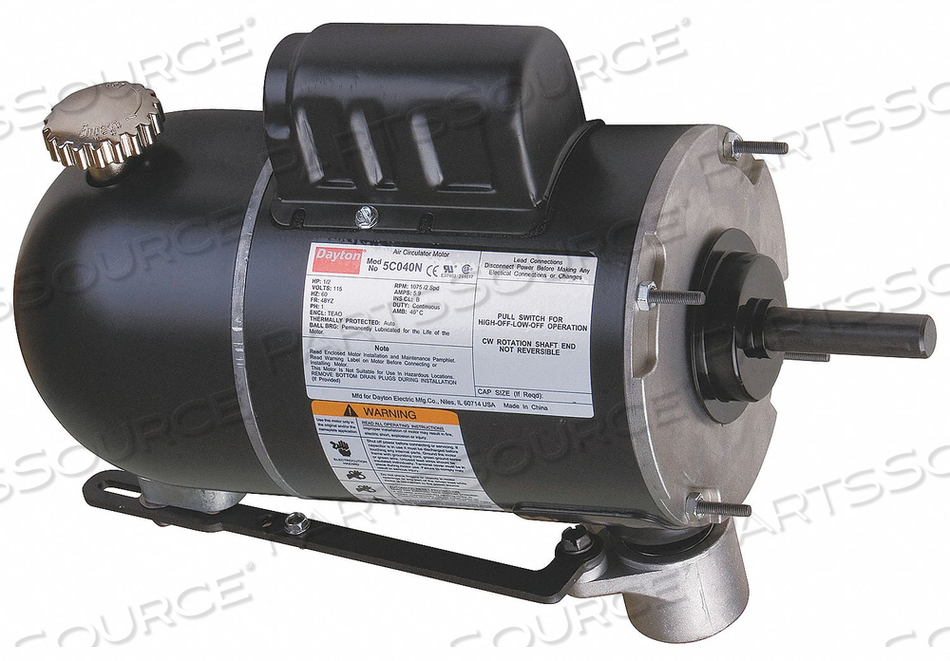

OSCILLATING FAN MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 1/2 HP, NAMEPLATE RPM 1,075/875, NO. OF SPEEDS 2, VOLTAGE 115V by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$457.89 eachReady to ship
OSCILLATING FAN MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 1/2 HP, NAMEPLATE RPM 1,075/875, NO. OF SPEEDS 2, VOLTAGE 115V  by DAYTON ELECTRIC MANUFACTURING CO
OSCILLATING FAN MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 1/2 HP, NAMEPLATE RPM 1,075/875, NO. OF SPEEDS 2, VOLTAGE 115V  by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 5C040
OSCILLATING FAN MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 1/2 HP, NAMEPLATE RPM 1,075/875, NO. OF SPEEDS 2, VOLTAGE 115V by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$457.89 each

OSCILLATING FAN MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 1/2 HP, NAMEPLATE RPM 1,075/875, NO. OF SPEEDS 2, VOLTAGE 115V AC, 4.5 A FULL LOAD AMPS, 48YZ FRAME, 60 HZ HZ, MOTOR SERVICE FACTOR 1, MOTOR THERMAL PROTECTION AUTO, INS. CLASS B, DUTY CYCLE CONTINUOUS, MAX. AMBIENT TEMP. 40 DEGREES C, MOTOR SHAFT ROTATION CWSE, MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED AIR-OVER, MOTOR MOUNTING POSITION HORIZONTAL, SHAFT LENGTH 3 1/16 IN,

Ready to ship
Asset Information
warning

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.

Are you an existing customer? Sign in to access your account.
Technical Specs
P/N: 5C040 Key Specs
Item
OSCILLATING FAN MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 1/2 HP, NAMEPLATE RPM 1,075/875, NO. OF SPEEDS 2, VOLTAGE 115V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
5C040
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
10 ft Cord & Pull Chain Switch
Yes
Ambient Temperature
40 Degrees C
Application
Air Circulators where Motor is Mounted Directly to Fan Column
Body Diameter
5-5/8 in
Capacitor Required
Included
Country of Origin
China
Duty
Continuous
Frame
48YZ
Full Load Amps
4.5
HP
1/2
Hz
60
Ins. Class
B
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Yoke
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CWSE
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Nameplate RPM
875/1075
Number of Speeds
2
Overall Length
13-15/16 in
Phase
1
Shaft Diameter
5/8 in
Shaft Length
3-1/16 in
Standards
CSA Certified, UL Recognized
Voltage
115
