OEM#: 5K672New OEM Original Outright

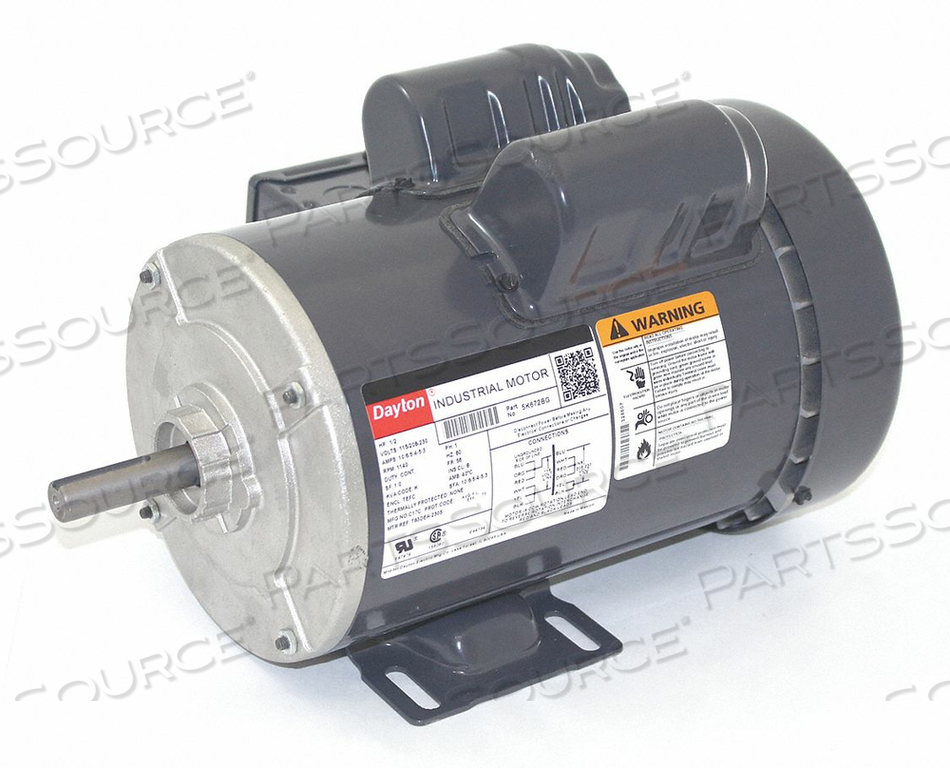

GP MTR CS/R TEFC 1/2 HP 1140 RPM 56 by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$697.19 each
OEM#: 5K672GP MTR CS/R TEFC 1/2 HP 1140 RPM 56 by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$697.19 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 5K672 Key Specs
Item
GP MTR CS/R TEFC 1/2 HP 1140 RPM 56
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
5K672
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
56
Full Load Amps
10.6/5.4-5.3
HP
1/2
Hz
60
Includes
Shaft Key, Water Slinger
Ins. Class
B
Length Less Shaft
11-5/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start/Run
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Service Factor
1
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1140
Nominal Efficiency
70 %
Number of Speeds
1
Overall Length
13-3/8 in
Phase
1
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA Certified (258501), UL Recognized (E47479)
Voltage
115/208-230
