OEM#: 5BE60New OEM Original Outright

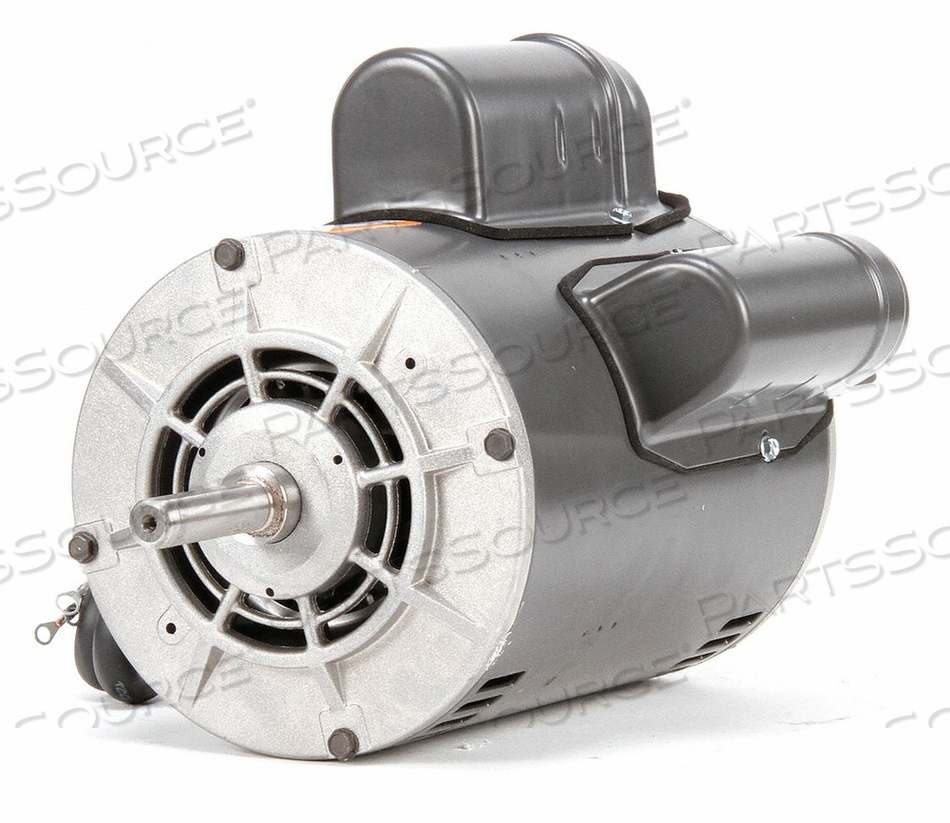

MOTOR CAP ST 1.5 HP 1725 115/208-230 56Z by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$1,221.69 each
OEM#: 5BE60MOTOR CAP ST 1.5 HP 1725 115/208-230 56Z by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$1,221.69 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 5BE60 Key Specs
Item
MOTOR CAP ST 1.5 HP 1725 115/208-230 56Z
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
5BE60
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Blowers, Fans and Air Circulators
Body Diameter
6-1/2 in
Bolt Circle Diameter
6-1/16 in
Capacitor Required
Included
Country of Origin
USA
Duty
Continuous
Frame
56Z
Full Load Amps
13.2/7.2-6.6
HP
1-1/2
Hz
60
Ins. Class
B
Length Less Shaft
10-1/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
Motor Mounting Position
All Angle
Motor Mounting Type
Stud
Motor Service Factor
1.15
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Location
Opposite Shaft End
Mounting Stud Pattern
4-1/4 in x 4-1/4 in
Nameplate RPM
1725
Number of Speeds
1
Phase
1
Shaft Diameter
5/8 in
Shaft Length
2-1/4 in
Standards
CSA Certified, UL Recognized
Stud Size
#10-32
Voltage
115/208-230
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
