OEM#: 52JD97New OEM Original Outright

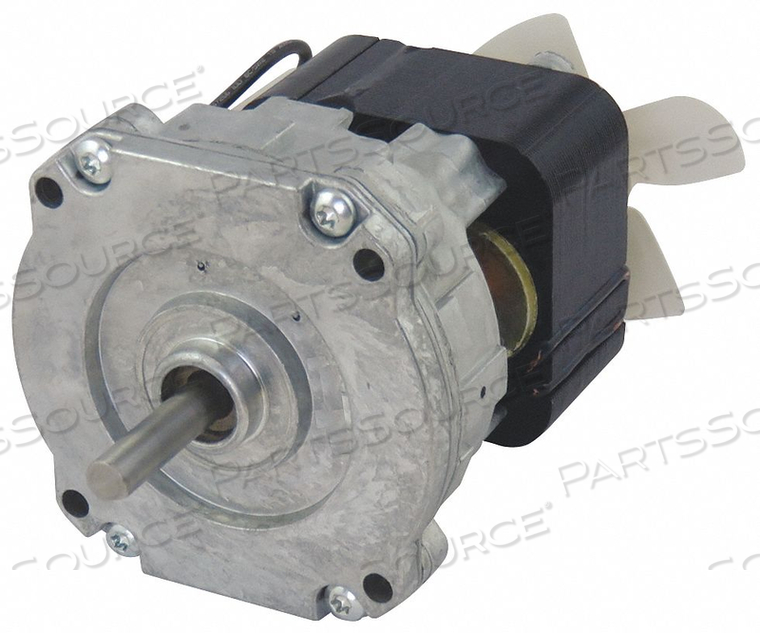

AC GEARMOTOR NAMEPLATE RPM 10 1.90A 115V by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$154.39 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO52JD97
AC GEARMOTOR NAMEPLATE RPM 10 1.90A 115V by DAYTON ELECTRIC MANUFACTURING CO
AC GEARMOTOR NAMEPLATE RPM 10 1.90A 115V by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 52JD97
AC GEARMOTOR NAMEPLATE RPM 10 1.90A 115V by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$154.39 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 52JD97 Key Specs
Item
AC GEARMOTOR NAMEPLATE RPM 10 1.90A 115V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
52JD97
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Ice Dispensing, Mail Sorting, Ticket Dispensing, DVD Kiosks, Conveyors, Agriculture, Industrial Machinery, Printing Press, Power Transmission, Packaging, Controls, X-Ray Equipment, Pumps, Ingredient Motors, Water Softeners, Vending, Food and Restaura
Bearings
Sintered Bronze Sleeve
Capacitor Required
No
Finish
Unpainted
Full Load Amps
1.9
Gear Case Material
Die Cast Zinc
Gear Material
Sintered Steel
Gear Ratio
294:1
Gear Type
Spur
Gearmotor Brake Type
None
Gearmotor Enclosure
Open
Gearmotor Mounting Position
All Angle
Gearmotor Phase
1
Gearmotor Rotation
CW
Gearmotor Shaft Orientation
Parallel
Gearmotor Shaft Type
Single
Gearmotor Type
AC Gearmotor
Gearmotor Voltage
115V AC
Gears
Spur
Housing
Die Cast Zinc
Hz
60 Hz
Input HP
1/60 hp
Insulation Class
A
Length Less Shaft
4 25/32 in
Lubrication
Grease Filled
Max. Ambient Temp.
40 Degrees C
Max. Torque
65 in-lb
Motor Shaft Design
Flat
Motor Type
Shaded Pole
Nameplate RPM
10 RPM
No Load RPM
12 RPM
Number of Brake Discs Required
0
Overall Length
6.0156 in
Overhung Load
30 lb
Reversible Shaft Output
No
Service Factor
1.0
Shaft Dia. (Dimension U)
3/8 in
Shaft Length (Dimension V)
1 in
Standards
UL Recognized/CSA
Starting Torque
100 in-lb
Thermal Protection
Auto
