OEM#: 4M096New OEM Original Outright

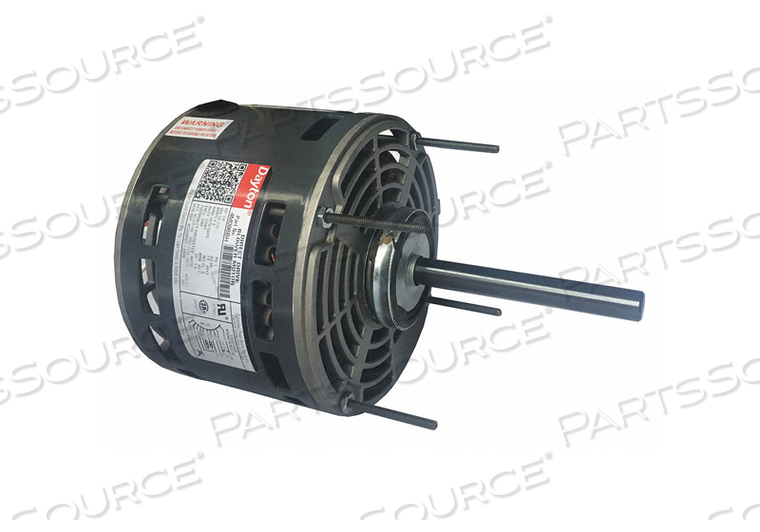

MOTOR 1/4HP D/D BLOWER by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$222.78 each
OEM#: 4M096MOTOR 1/4HP D/D BLOWER by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$222.78 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 4M096 Key Specs
Item
MOTOR 1/4HP D/D BLOWER
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
4M096
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Blowers, Fans and Air Circulators
Body Diameter
5-5/8 in
Bolt Circle Diameter
5-1/8 in
Capacitor Required
2MDV4
Duty
Continuous
Frame
48YZ
Full Load Amps
4.2
HP
1/4 in
Hz
60
Includes
Split Rings to Increase Ring Diameter to 2 1/2 in
Ins. Class
B
Length Less Shaft
5-3/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Sleeve
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Position
All Angle
Motor Mounting Type
Ring/Stud
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1075
Nominal Efficiency
61 %
Number of Speeds
3
Overall Length
9-3/16 in
Phase
1
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
4-3/4 in
Shaft Diameter
1/2 in
Shaft Length
4 in
Standards
CSA Certified (258501), UL Recognized (E37403)
Voltage
115
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240
