OEM#: 4Z734New OEM Original Outright

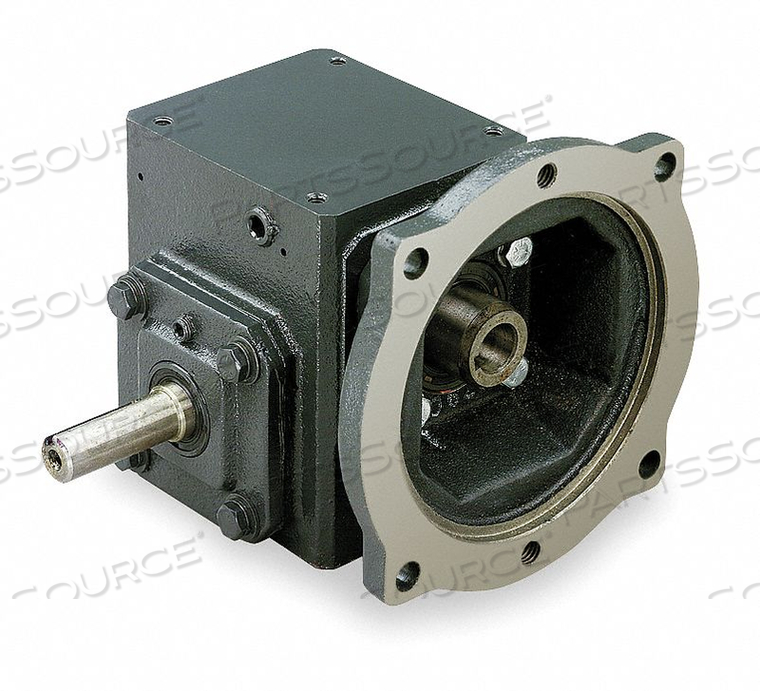

SPEED REDUCER C-FACE 56C 20 1 by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$1,375.44 each
OEM#: 4Z734SPEED REDUCER C-FACE 56C 20 1 by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$1,375.44 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 4Z734 Key Specs
Item
SPEED REDUCER C-FACE 56C 20 1
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
4Z734
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearings
Ball
Bore Dia.
5/8 in
Duty
Standard
Finish
Powdered Epoxy Paint
Frame
56C
Gear Material
Hardened and Ground Steel
Gear Type
Worm
Housing Material
Cast Iron
Input RPM
1,750
Lubrication
Klubersynth UH1 6-460
Max. Input HP
1.5 hp
Max. Output Torque
891 in-lb
Mounting
Any Position Except Input Motor Shaft Up
Nominal Output RPM
88
Nominal Ratio
20:1
Number of Stages
1
Output Shaft Dia.
1 1/4 in
Output Torque @ 1 HP
427 in-lb
Output Torque @ 1.5 HP
582 in-lb
Output Torque @ 2 HP
891 in-lb
Overhung Load
1,300 lb
Pinion Material
Hardened Steel
Rotation
Forward/Reversible
Seal Type
Double Lip
Shaft Orientation
Right Angle
Single/Double Output/Universal
Single Output
Solid/Hollow Output Shaft
Solid
Speed Reducer Type
C-Face
Standards
AGMA
Worm Center Distance
2.62 in
Worm Gear Material
Bronze
