OEM#: 4Z529New OEM Original Outright

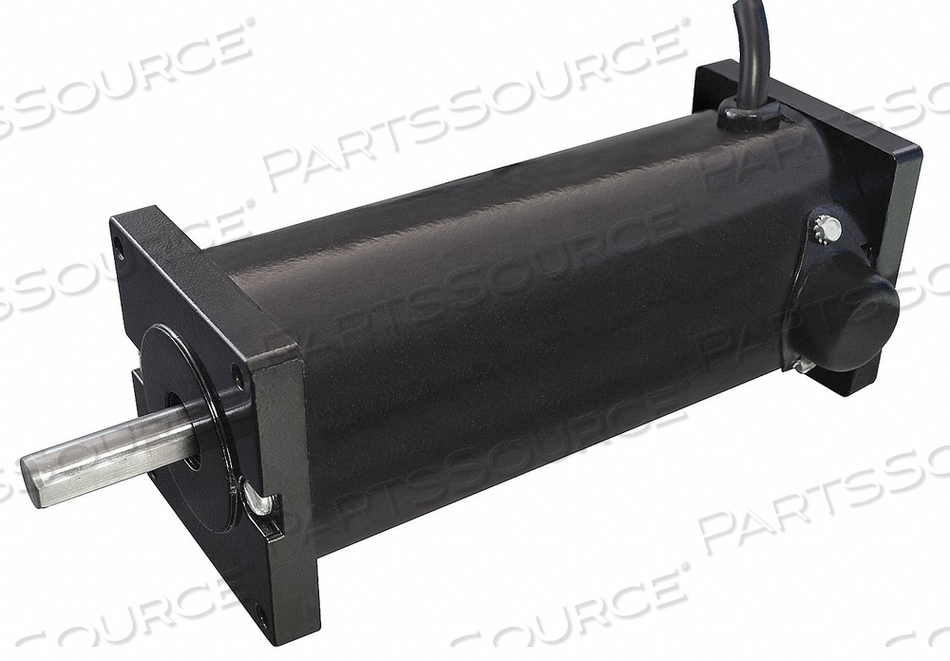

DC MOTOR PM TENV 1/6 HP 1800RPM 12/24VDC by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$449.27 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO4Z529
DC MOTOR PM TENV 1/6 HP 1800RPM 12/24VDC by DAYTON ELECTRIC MANUFACTURING CO
DC MOTOR PM TENV 1/6 HP 1800RPM 12/24VDC by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 4Z529
DC MOTOR PM TENV 1/6 HP 1800RPM 12/24VDC by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$449.27 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 4Z529 Key Specs
Item
DC MOTOR PM TENV 1/6 HP 1800RPM 12/24VDC
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
4Z529
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Base Mounting O.C.
7-7/16 x 2 in
Bearings
Ball
Brush Type
External
Country of Origin
USA
Face Mounting O.C.
2-5/8 x 2-5/8
Frame
Non-Standard
Full Load Amps
16.2 A
Full Load Torque
6.38 in-lb
HP
1/6, 1/3
Ins. Class
B
Length Less Shaft
7-7/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
Variable Speed
Motor Design
DC Permanent Magnet
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Mounting Type
Face/Base
Motor Thermal Protection
None
Nameplate RPM
1800/4200
Overall Length
9-3/8 in
Rotation
CW/CCW
Shaft Diameter
1/2 in
Shaft Length
1-1/2 in
Standards
UL Recognized (E61772)
Voltage
12/24V DC
Voltage Compatibility
12V DC, 24V DC
