OEM#: 4YY54New OEM Original Outright

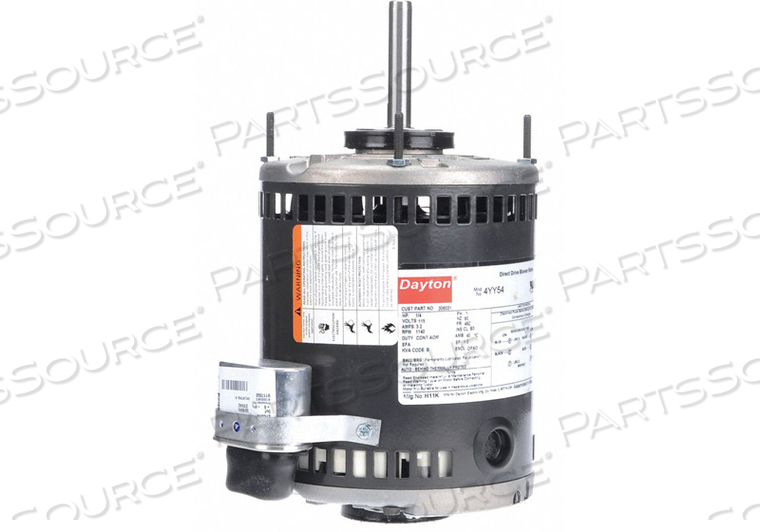

MOTOR PSC 1/4 HP 1140 RPM 115V 48Y OAO by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$257.56 each
OEM#: 4YY54MOTOR PSC 1/4 HP 1140 RPM 115V 48Y OAO by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$257.56 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 4YY54 Key Specs
Item
MOTOR PSC 1/4 HP 1140 RPM 115V 48Y OAO
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
4YY54
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
4HZ51, Replacement Motor for Mfr. No. 4HZ49
Body Diameter
5-5/8 in
Bolt Circle Diameter
5-1/8 in
Capacitor Required
Included
Country of Origin
China
Duty
Continuous
Frame
48Y
Full Load Amps
3.2
HP
1/4 in
Hz
60
Includes
5MFD @ 370V AC Capacitor
Ins. Class
B
Length Less Shaft
7 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Position
All Angle
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Location
Shaft End
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1140
Number of Speeds
1
Phase
1
Replacement For
Mfr. No. 4HZ49, 4HZ51
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
7-3/8 in
Shaft Diameter
1/2 in
Shaft Length
2-1/2 in
Standards
CSA Certified, UL Recognized
Stud Size
#10-32
Voltage
115
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240
