OEM#: 4YU29New OEM Original Outright

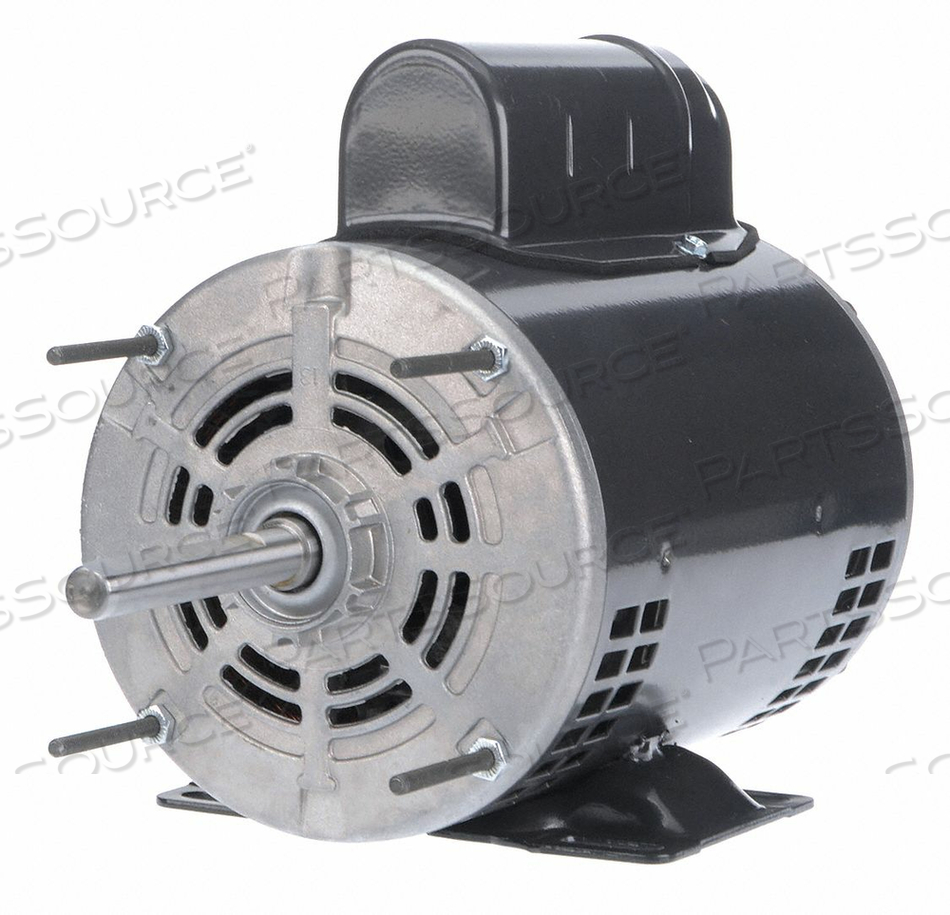

DIRECT DRIVE BLOWER MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/2 by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$435.65 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO4YU29
DIRECT DRIVE BLOWER MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/2 by DAYTON ELECTRIC MANUFACTURING CO
DIRECT DRIVE BLOWER MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/2 by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 4YU29
DIRECT DRIVE BLOWER MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/2 by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$435.65 each

DIRECT DRIVE BLOWER MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/230V AC, FULL LOAD AMPS 7.0/3.5 A, 48Z FRAME, REPLACEMENT FOR 4HZ45, 4HZ45G, 4HZ47, USABLE @ 208V NO, USABLE @ 200V NO, MOTOR THERMAL PROTECTION AUTO, 60 HZ HZ, MOTOR SERVICE FACTOR 1, INS. CLASS B, MOTOR SHAFT ROTATION CW/CCW, MAX. AMBIENT TEMP. 40 DEGREES C, DUTY CYCLE CONTINUOUS, MOTOR ENCLOSURE DESIGN OPEN

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 4YU29 Key Specs
Item
DIRECT DRIVE BLOWER MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/2
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
4YU29
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
4HZ47, Replacement Motor for Mfr. No. 4HZ45
Body Diameter
5-5/8 in
Bolt Circle Diameter
5-1/8 in
Capacitor Required
Included
Country of Origin
USA
Duty
Continuous
Frame
48Z
Full Load Amps
7/3.5
HP
3/4
Hz
60
Ins. Class
B
Length Less Shaft
8-7/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Location
Shaft End
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1725
Number of Speeds
1
Phase
1
Replacement For
Mfr. No. 4HZ45, 4HZ47
Shaft Diameter
1/2 in
Shaft Length
3 in
Standards
UL Recognized, CSA Certified
Stud Size
#10-32
Voltage
115/230
Voltage Compatibility
115, 115/230, 120, 120/240, 230, 240
