OEM#: 4YFF7New OEM Original Outright

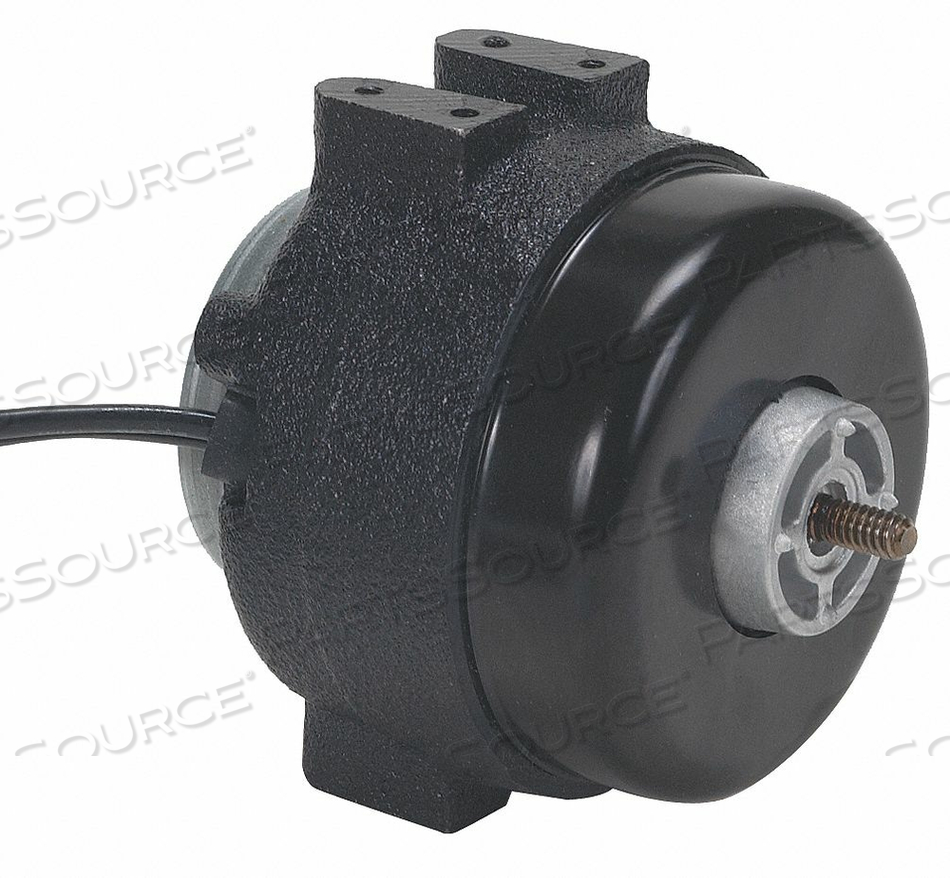

UNIT BEARING MOTOR, SINGLE PHASE, MOTOR DESIGN SHADED POLE, 1/150 HP, NAMEPLATE RPM 1,550, VOLTAGE 115V AC, 0.34 A FULL LOAD AMPS, NON-STAND by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$42.44 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO4YFF7
UNIT BEARING MOTOR, SINGLE PHASE, MOTOR DESIGN SHADED POLE, 1/150 HP, NAMEPLATE RPM 1,550, VOLTAGE 115V AC, 0.34 A FULL LOAD AMPS, NON-STAND by DAYTON ELECTRIC MANUFACTURING CO
UNIT BEARING MOTOR, SINGLE PHASE, MOTOR DESIGN SHADED POLE, 1/150 HP, NAMEPLATE RPM 1,550, VOLTAGE 115V AC, 0.34 A FULL LOAD AMPS, NON-STAND by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 4YFF7
UNIT BEARING MOTOR, SINGLE PHASE, MOTOR DESIGN SHADED POLE, 1/150 HP, NAMEPLATE RPM 1,550, VOLTAGE 115V AC, 0.34 A FULL LOAD AMPS, NON-STAND by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$42.44 each

UNIT BEARING MOTOR, SINGLE PHASE, MOTOR DESIGN SHADED POLE, 1/150 HP, NAMEPLATE RPM 1,550, VOLTAGE 115V AC, 0.34 A FULL LOAD AMPS, NON-STANDARD FRAME, OUTPUT WATTS 5 W, 60 HZ HZ, MOTOR SERVICE FACTOR 1, MOTOR THERMAL PROTECTION IMPEDANCE, INS. CLASS A, MAX. AMBIENT TEMP. 40 DEGREES C, MOTOR SHAFT ROTATION CWLE, MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED AIR-OVER, MOTOR MOUNTING TYPE REAR/DOUBLE FOOT, MOTOR FRAME MATERIAL CAST ALUMINUM, MOTOR MOUNTIN

Ready to ship
Asset Information
warning

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.

Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 4YFF7 Key Specs
Item
UNIT BEARING MOTOR, SINGLE PHASE, MOTOR DESIGN SHADED POLE, 1/150 HP, NAMEPLATE RPM 1,550, VOLTAGE 115V AC, 0.34 A FULL LOAD AMPS, NON-STAND
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
4YFF7
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
3-1/2 in
Bolt Circle Diameter
2-13/16 in
Country of Origin
Republic of Korea
Frame
Non-Standard
Full Load Amps
0.34
HP
1/150
Hz
60
Ins. Class
A
Length Less Shaft
2-5/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Sleeve
Motor Design
Shaded Pole
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Frame Material
Cast Aluminum
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Mounting Type
Rear/Double Foot
Motor Service Factor
1
Motor Shaft Design
Threaded
Motor Shaft Rotation
CWLE
Motor Sub Application
Refrigerator/Freezer
Motor Thermal Protection
Impedance
Nameplate RPM
1550
Output Watts
5 W
Overall Length
3-1/8 in
Phase
1
Shaft Diameter
1/4 in
Shaft Length
1/2 in
Voltage
115
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240
