OEM#: 4VAG3BGNew OEM Original Outright

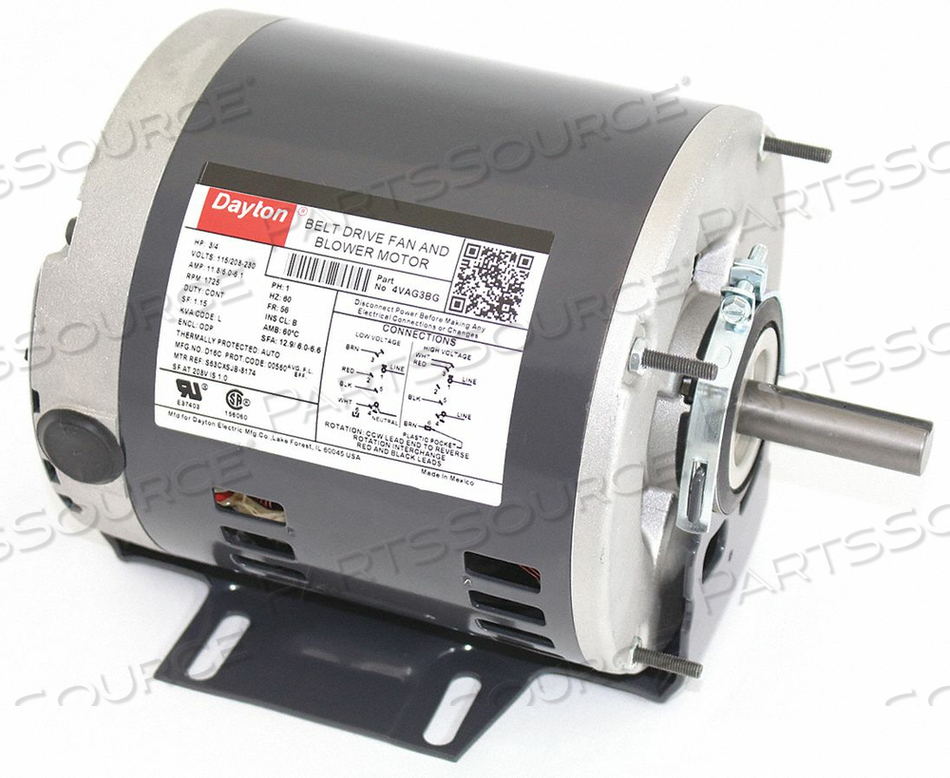

MOTOR SP PH 3/4 HP 1725 115/208-230V 56 by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$629.56 each
OEM#: 4VAG3BGMOTOR SP PH 3/4 HP 1725 115/208-230V 56 by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$629.56 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 4VAG3BG Key Specs
Item
MOTOR SP PH 3/4 HP 1725 115/208-230V 56
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
4VAG3BG
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
6-1/2 in
Country of Origin
Mexico
Duty
Continuous
Frame
56
Full Load Amps
11.8/6-6.1
HP
3/4
Hz
60
Ins. Class
B
Length Less Shaft
7-15/16 in
Max Ambient Temperature
60 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Belt Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Pattern
4-1/4 in x 4-1/4 in
Nameplate RPM
1725
Nominal Efficiency
65.6 %
Number of Speeds
1
Overall Length
9-13/16 in
Phase
1
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
7-7/16 in
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA Certified (258501), UL Recognized (E37403)
Voltage
115/208-230
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
