OEM#: 4VAG1BGNew OEM Original Outright

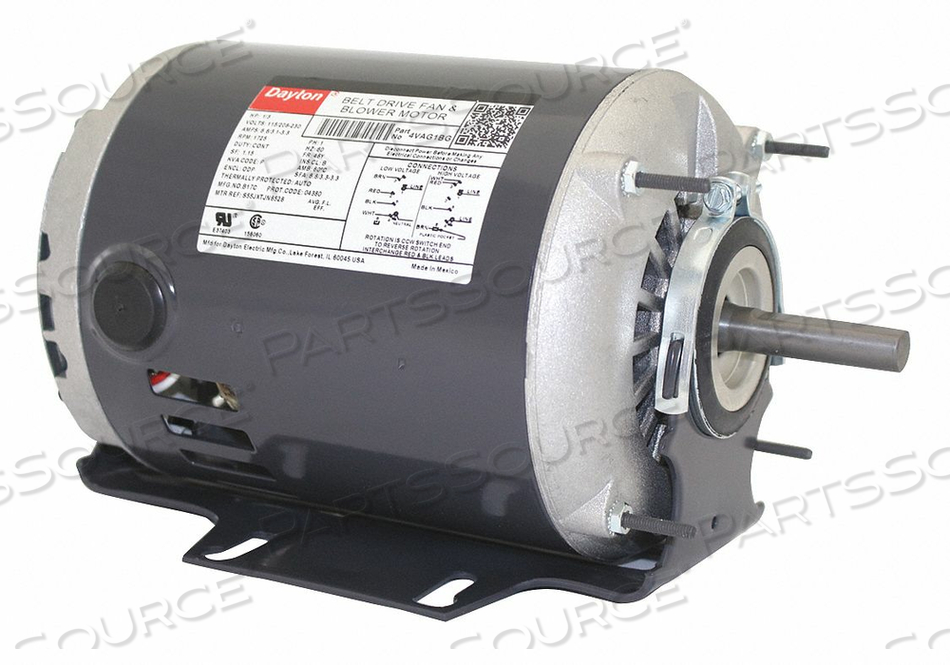

MOTOR SP PH 1/3 HP 1725 115/208-230V 48Y by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$450.10 each
OEM#: 4VAG1BGMOTOR SP PH 1/3 HP 1725 115/208-230V 48Y by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$450.10 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 4VAG1BG Key Specs
Item
MOTOR SP PH 1/3 HP 1725 115/208-230V 48Y
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
4VAG1BG
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
5-5/8 in
Country of Origin
Mexico
Duty
Continuous
Frame
48Y
Full Load Amps
6.6/3.1-3.3
HP
1/3
Hz
60
Ins. Class
B
Length Less Shaft
8-7/16 in
Max Ambient Temperature
60 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1.15
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Belt Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1725
Nominal Efficiency
57.3 %
Number of Speeds
1
Overall Length
10 7/32 in
Phase
1
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
8-1/16 in
Shaft Diameter
1/2 in
Shaft Length
1-7/8 in
Standards
CSA Certified (258501), UL Recognized (E37403)
Voltage
115/208-230
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
