OEM#: 4HZ61BGNew OEM Original Outright

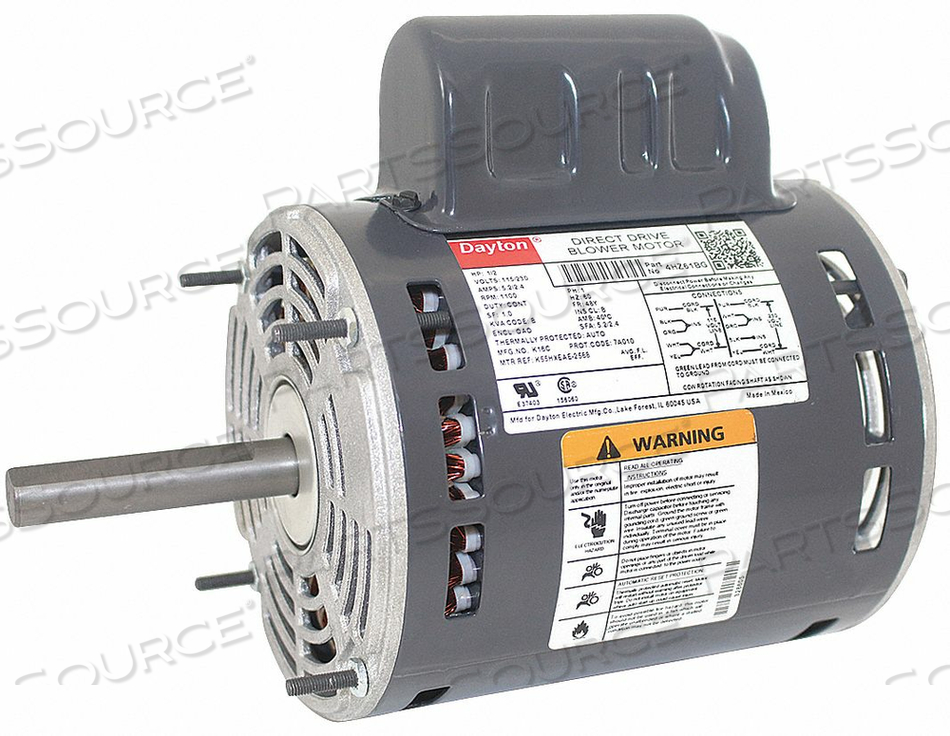

MOTOR PSC 1/2 HP 1100 115/230V 48Y OAO by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$347.84 each
OEM#: 4HZ61BGMOTOR PSC 1/2 HP 1100 115/230V 48Y OAO by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$347.84 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 4HZ61BG Key Specs
Item
MOTOR PSC 1/2 HP 1100 115/230V 48Y OAO
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
4HZ61BG
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
4HZ53, 4HZ55, Mfr. No. 4HZ29
Body Diameter
5-5/8 in
Bolt Circle Diameter
5-1/8 in
Capacitor Required
Included
Country of Origin
Mexico
Duty
Continuous Air-Over
Frame
48Y
Full Load Amps
5.2-2.4
HP
1/2
Hz
60
Includes
Capacitor
Ins. Class
B
Length Less Shaft
6-9/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Position
All Angle
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CCWSE
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Nameplate RPM
1100
Nominal Efficiency
67.5 %
Number of Speeds
1
Overall Length
9-9/16 in
Phase
1
Replacement For
Mfr. No. 4HZ29, 4HZ53, 4HZ55
Resilient Ring Diameter
2-1/4 in
Shaft Diameter
5/8 in
Shaft Length
3 in
Standards
UL Recognition (E37403), CSA Certification (258501)
Voltage
115/230
Voltage Compatibility
115, 115/230, 120, 120/240, 230, 240
