OEM#: 48ZJ85New OEM Original Outright

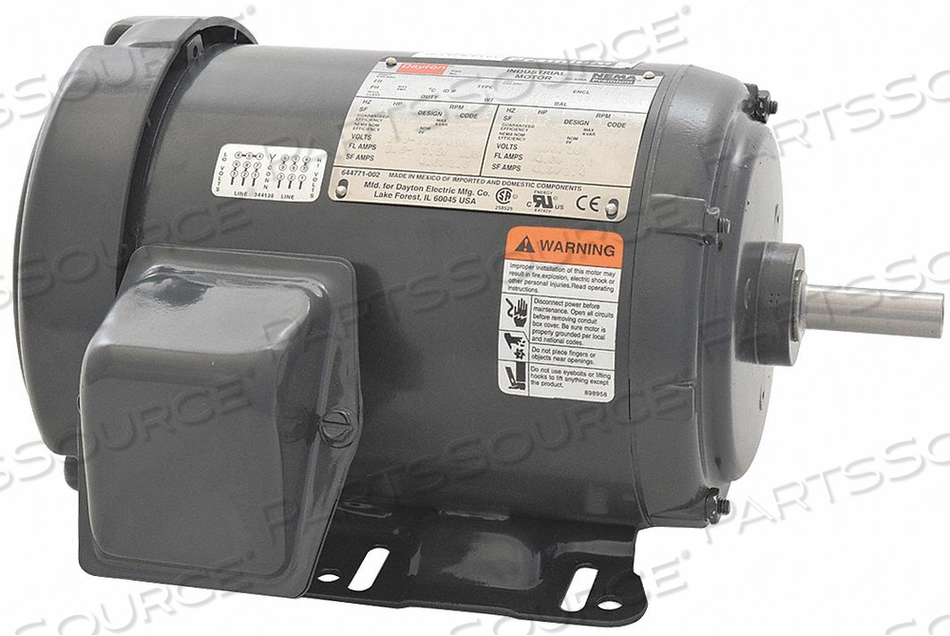

GENERAL PURPOSE MOTOR TEFC 1 HP 1155 RPM by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$655.60 each
OEM#: 48ZJ85GENERAL PURPOSE MOTOR TEFC 1 HP 1155 RPM by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$655.60 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 48ZJ85 Key Specs
Item
GENERAL PURPOSE MOTOR TEFC 1 HP 1155 RPM
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
48ZJ85
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC060A
Country of Origin
Mexico
Duty
Continuous
Frame
56H
Full Load Amps
3.5/1.8
HP
1
Hz
60/50
Includes
Shaft Key and Shaft Slinger
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
10-11/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1155
Nominal Efficiency
82.5 %
Number of Speeds
1
Overall Length
12-5/8 in
Phase
3
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
UL (E47479), CSA (258501)
Voltage
208-230/460
