OEM#: 44YU09New OEM Original Outright

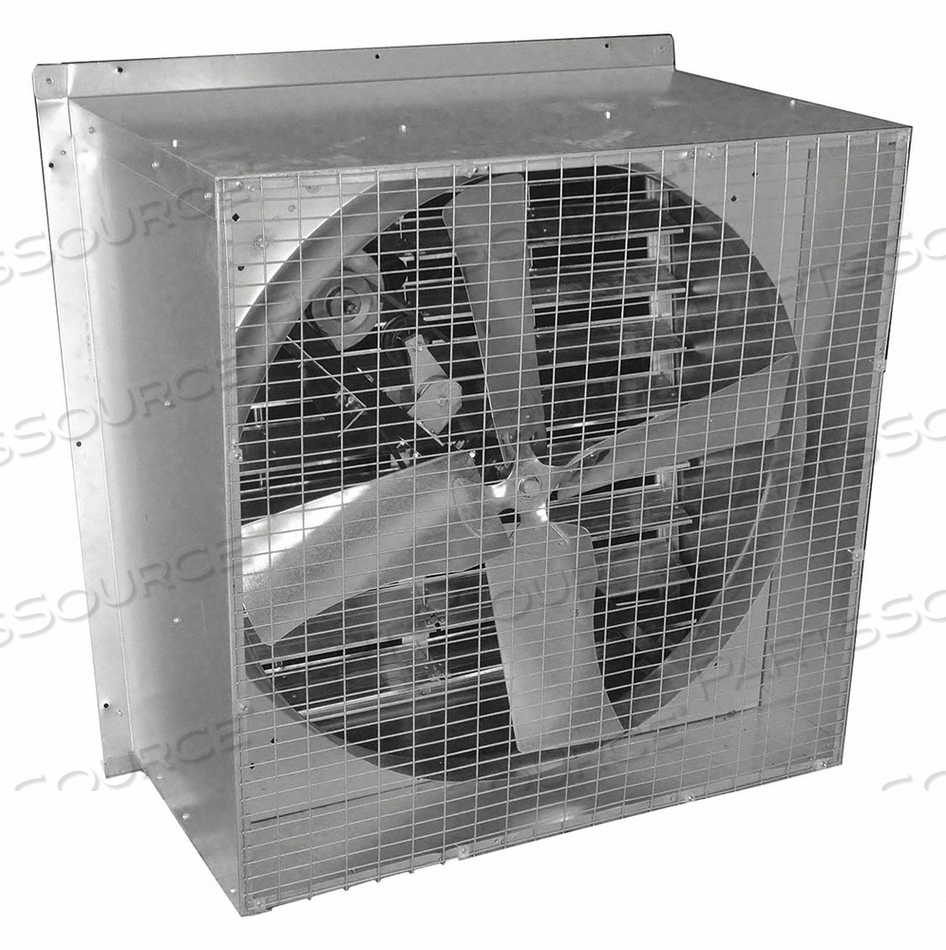

AGRICULTURAL EXHAUST FAN, ASSEMBLED ASSEMBLED, BLADE DIAMETER 36 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ 0.000 IN by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$1,918.03 each
$2,078.65 Savings: $160.62 (8%)
Ready to ship
HomeDAYTON ELECTRIC MANUFACTURING CO44YU09
AGRICULTURAL EXHAUST FAN, ASSEMBLED ASSEMBLED, BLADE DIAMETER 36 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ 0.000 IN by DAYTON ELECTRIC MANUFACTURING CO
AGRICULTURAL EXHAUST FAN, ASSEMBLED ASSEMBLED, BLADE DIAMETER 36 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ 0.000 IN by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 44YU09
AGRICULTURAL EXHAUST FAN, ASSEMBLED ASSEMBLED, BLADE DIAMETER 36 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ 0.000 IN by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$1,918.03 each
$2,078.65 Savings: $160.62 (8%)

AGRICULTURAL EXHAUST FAN, ASSEMBLED ASSEMBLED, BLADE DIAMETER 36 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ 0.000 IN SP 11,420 CFM, FOR CUT-OUT HEIGHT 43 IN, FOR CUT-OUT WIDTH 40 7/8 IN, FOR MAXIMUM WALL THICKNESS 8 IN, FOR MINIMUM WALL THICKNESS 6 IN, FRAME FINISH GALVANIZED, FRAME MATERIAL STEEL, GUARD FINISH ZINC PLATED, GUARD MATERIAL STEEL, GUARD TYPE EXHAUST, HOUSING MATERIAL STEEL, HOUSING FINISH GALVANIZED, INCLUDE

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 44YU09 Key Specs
Item
AGRICULTURAL EXHAUST FAN, ASSEMBLED ASSEMBLED, BLADE DIAMETER 36 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ 0.000 IN
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
44YU09
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Agency Compliance
Motor is UL recognized for USA & Canada.
Bearing Type
Sealed Ball
CFM @ 0.000 in SP
11,420
CFM @ 0.050 in SP
10,790
CFM @ 0.100 in SP
10,170
CFM @ 0.150 in SP
9480
CFM/Watt @ 0.000 in SP
19.4
CFM/Watt @ 0.050 in SP
17.6
CFM/Watt @ 0.100 in SP
15.9
CFM/Watt @ 0.150 in SP
14.2
Country of Origin
USA
Fan RPM
705
Flange Width (Inches)
2 in
Frame Finish
Galvanized Steel
Frame Material
Galvanized Steel
Full Load Amps
6.4/3.2
HP
3/4 hp
Height (Inches)
40-3/4 in
Hz
60
Includes
1 x 2 mesh screen
Max Ambient Temperature (F)
104 Degrees F
Max Depth (Inches)
27 in
Mesh Size
1 x 2 in
Motor Enclosure
Totally Enclosed Air Over
Motor Insulation
Class B
Motor RPM
1725
Motor Type
Capacitor-Start/Run
Mounting Location
Wall
Number of Blades
4
Opening Required H (Inches)
42-7/8 in
Opening Required W (Inches)
40-7/8 in
Phase
1
Propeller Diameter (Inches)
36 in
Propeller Material
Galvanized Steel
Shaft Diameter (Inches)
7/8 in
Type
Slant-Wall, Belt-Drive
Venturi Clearance Diameter (Inches)
5/16 in
Venturi Depth (Inches)
4 in
Voltage
115/230
Width (Inches)
40-7/64 in
