OEM#: 41NL04New OEM Original Outright

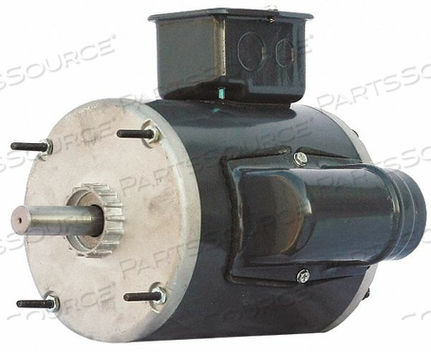

MOTOR FANS 1/4 HP by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$171.88 each
OEM#: 41NL04MOTOR FANS 1/4 HP by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$171.88 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 41NL04 Key Specs
Item
MOTOR FANS 1/4 HP
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
41NL04
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Exhaust Fans
Body Diameter
5-19/32 in
Bolt Circle Diameter
3/16 in
Capacitor Required
Included
Country of Origin
China
Frame
Non-Standard
Full Load Amps
3.5
HP
1/4 in
Hz
60
Ins. Class
B
Length Less Shaft
6-7/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
OEM Replacement
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Rotation
CWSE
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1725
Number of Speeds
1
Overall Length
9-5/32 in
Phase
1
Replacement For
Dayton 1HKL6C, 1HKL7C, 1HLA5C, 1HLA8C
Shaft Diameter
17 mm
Shaft Length
2-9/32 in
Standards
UL
Stud Size
M5
Voltage
115
