OEM#: 3M469New OEM Original Outright

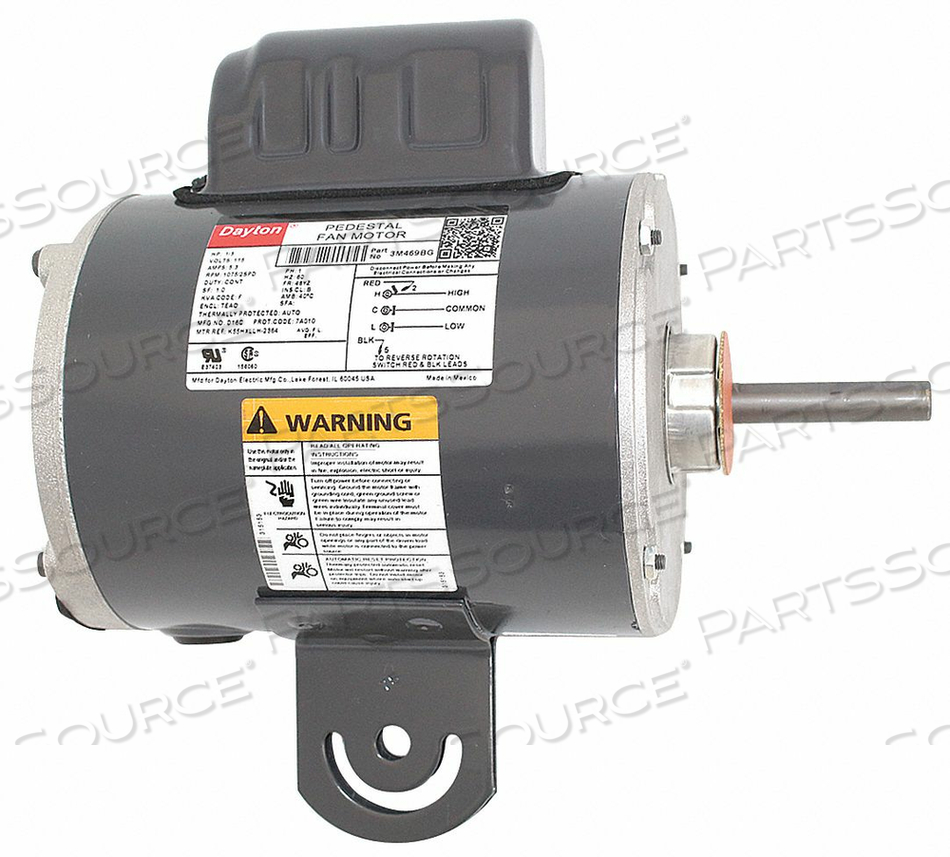

MOTOR 1/3 HP YOKE by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$330.37 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO3m469
MOTOR 1/3 HP YOKE by DAYTON ELECTRIC MANUFACTURING CO
MOTOR 1/3 HP YOKE by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 3M469
MOTOR 1/3 HP YOKE by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$330.37 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 3M469 Key Specs
Item
MOTOR 1/3 HP YOKE
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
3M469
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
10 ft Cord & Pull Chain Switch
No
Ambient Temperature
40 Degrees C
Application
Air Circulators where Motor is Mounted Directly to Fan Column, Also Used on Exhaust Fans, Unit Heaters and Other Air-moving Uses
Body Diameter
5-5/8 in
Capacitor Required
Included
Duty
Continuous
Frame
48YZ
Full Load Amps
5.3
HP
1/3
Hz
60
Ins. Class
B
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Yoke
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Pedestal Fans
Motor Thermal Protection
Auto
Nameplate RPM
1075
Number of Speeds
2
Overall Length
10-9/16 in
Phase
1
Shaft Diameter
1/2 in
Shaft Length
2-1/2 in
Standards
CSA Certified, UL Recognized
Voltage
115
