OEM#: 3K199New OEM Original Outright

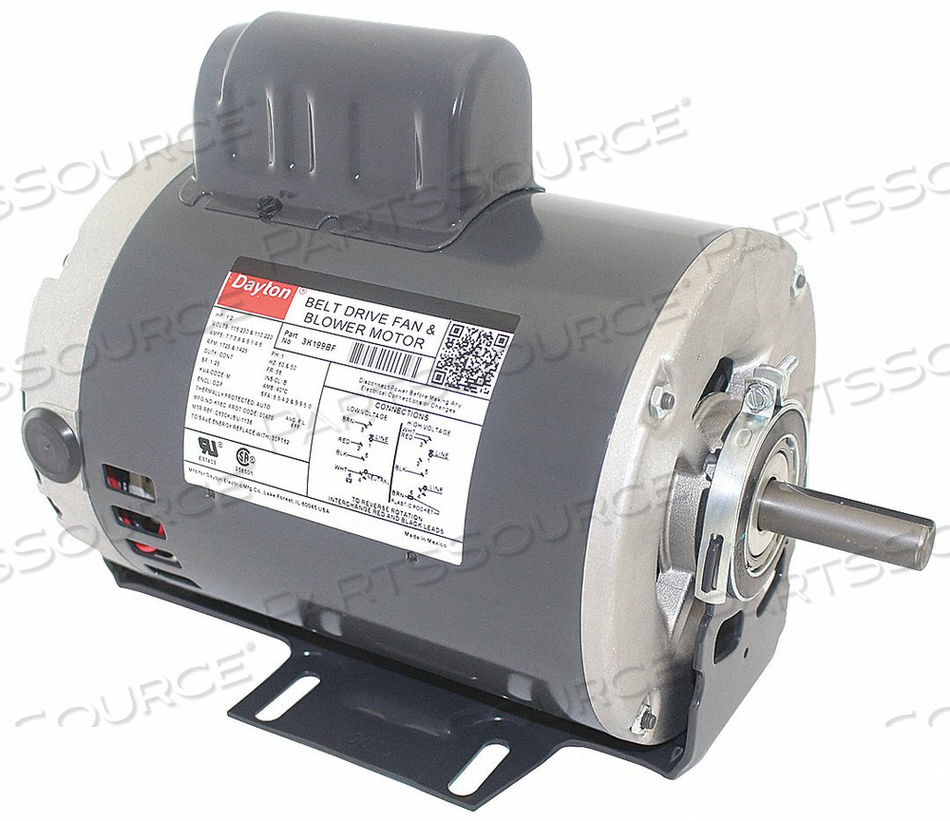

BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/230, 7.7/3.8 A FULL by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$513.45 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO3k199
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/230, 7.7/3.8 A FULL by DAYTON ELECTRIC MANUFACTURING CO
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/230, 7.7/3.8 A FULL by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 3K199
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/230, 7.7/3.8 A FULL by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$513.45 each

BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/230, 7.7/3.8 A FULL LOAD AMPS, 56 FRAME, 60/50 HZ HZ, MOTOR SERVICE FACTOR 1.25, MOTOR THERMAL PROTECTION AUTO, INS. CLASS B, MAX. AMBIENT TEMP. 104 DEGREES F, DUTY CYCLE CONTINUOUS, MOTOR SHAFT ROTATION CW/CCW, MOTOR ENCLOSURE DESIGN OPEN DRIPPROOF, MOTOR MOUNTING TYPE CRADLE BASE, MOTOR MOUNTING POSITION ALL ANGLE, MOTOR FRAME

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 3K199 Key Specs
Item
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 1/2 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/230, 7.7/3.8 A FULL
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
3K199
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
56
Full Load Amps
7.7/3.8
HP
1/2
Hz
60/50
Ins. Class
B
Length Less Shaft
9-3/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Belt Drive Fan/Blower
Motor Thermal Protection
Auto
Nameplate RPM
1725
Number of Speeds
1
Overall Length
11-5/16 in
Phase
1
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA Certified (156060), UL Recognized (E47479)
Voltage
115/230
Voltage Compatibility
115, 115/230, 120, 120/240, 230, 240
