OEM#: 3LU90New OEM Original Outright

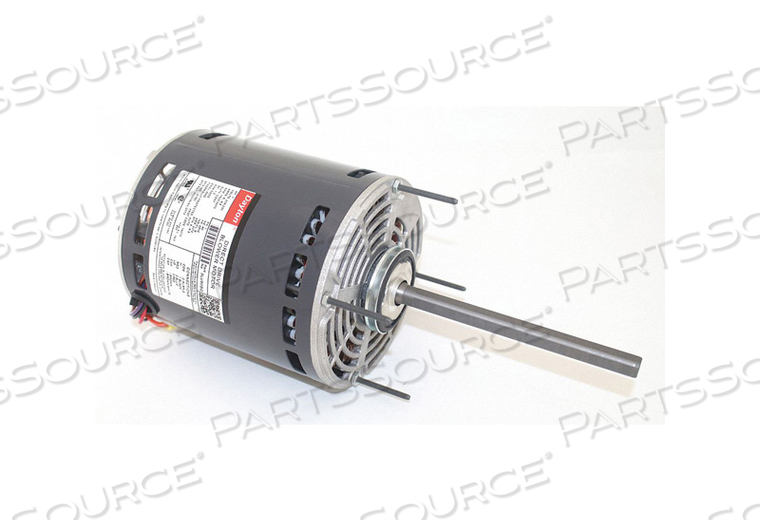

MOTOR 1HP D/D BLOWER by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$246.51 each
OEM#: 3LU90MOTOR 1HP D/D BLOWER by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$246.51 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 3LU90 Key Specs
Item
MOTOR 1HP D/D BLOWER
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
3LU90
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Blowers, Fans and Air Circulators
Body Diameter
5-5/8 in
Bolt Circle Diameter
5-1/8 in
Capacitor Required
2MDW2
Duty
Continuous
Frame
48YZ
Full Load Amps
6-6.8
HP
1
Hz
60
Includes
Split Ring Conversion Kit
Ins. Class
B
Length Less Shaft
7-7/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Position
All Angle
Motor Mounting Type
Ring/Stud
Motor Service Factor
1
Motor Shaft Design
Double-Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1625
Nominal Efficiency
79.7 %
Number of Speeds
3
Overall Length
13-7/16 in
Phase
1
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
7 in
Shaft Diameter
1/2 in
Shaft Length
6 in
Standards
CSA Certified (258501), UL Component Recognition (E37403)
Voltage
208-230
Voltage Compatibility
115/208-230, 208-230, 208-240
