OEM#: 36VF42New OEM Original Outright

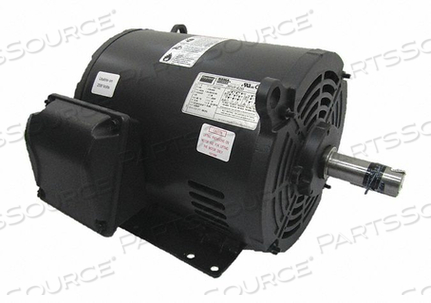

GP MOTOR ODP 10 HP 3535 RPM 1-3/8IN DIA by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$1,327.78 each
OEM#: 36VF42GP MOTOR ODP 10 HP 3535 RPM 1-3/8IN DIA by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$1,327.78 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 36VF42 Key Specs
Item
GP MOTOR ODP 10 HP 3535 RPM 1-3/8IN DIA
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
36VF42
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Country of Origin
Mexico
Duty
Continuous
Frame
213/5T
Full Load Amps
23.3/11.6
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
HP
10 hp
Hz
60
Includes
Conduit Box
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
13 19/32 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3535
Nominal Efficiency
89.5 %
Number of Speeds
1
Overall Length
16 in
Phase
3
RPM Group
3001-3600
RPM Range
3001-3600
Shaft Diameter
1-3/8 in
Shaft Length
3-3/8 in
Standards
CE, CSA, UL
Voltage
230/460
