OEM#: 36VE88New OEM Original Outright

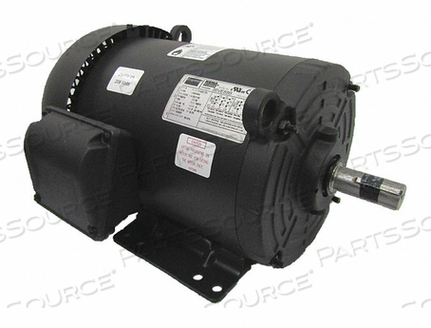

GP MOTOR TEFC 1 HP 1170 RPM 7/8IN. DIA. by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$817.63 each
OEM#: 36VE88GP MOTOR TEFC 1 HP 1170 RPM 7/8IN. DIA. by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$817.63 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 36VE88 Key Specs
Item
GP MOTOR TEFC 1 HP 1170 RPM 7/8IN. DIA.
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
36VE88
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Country of Origin
Mexico
Duty
Continuous
Frame
182/4
Full Load Amps
3.2/1.6
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
HP
1 hp
Hz
60
Includes
Conduit Box
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
13 9/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1170
Nominal Efficiency
82.5 %
Number of Speeds
1
Overall Length
15-7/8 in
Phase
3
RPM Group
1101-1200
RPM Range
1101-1200
Shaft Diameter
7/8 in
Shaft Length
2-1/4 in
Standards
CE, CSA, UL
Voltage
208-230/460
