OEM#: 31XL42New OEM Original Outright

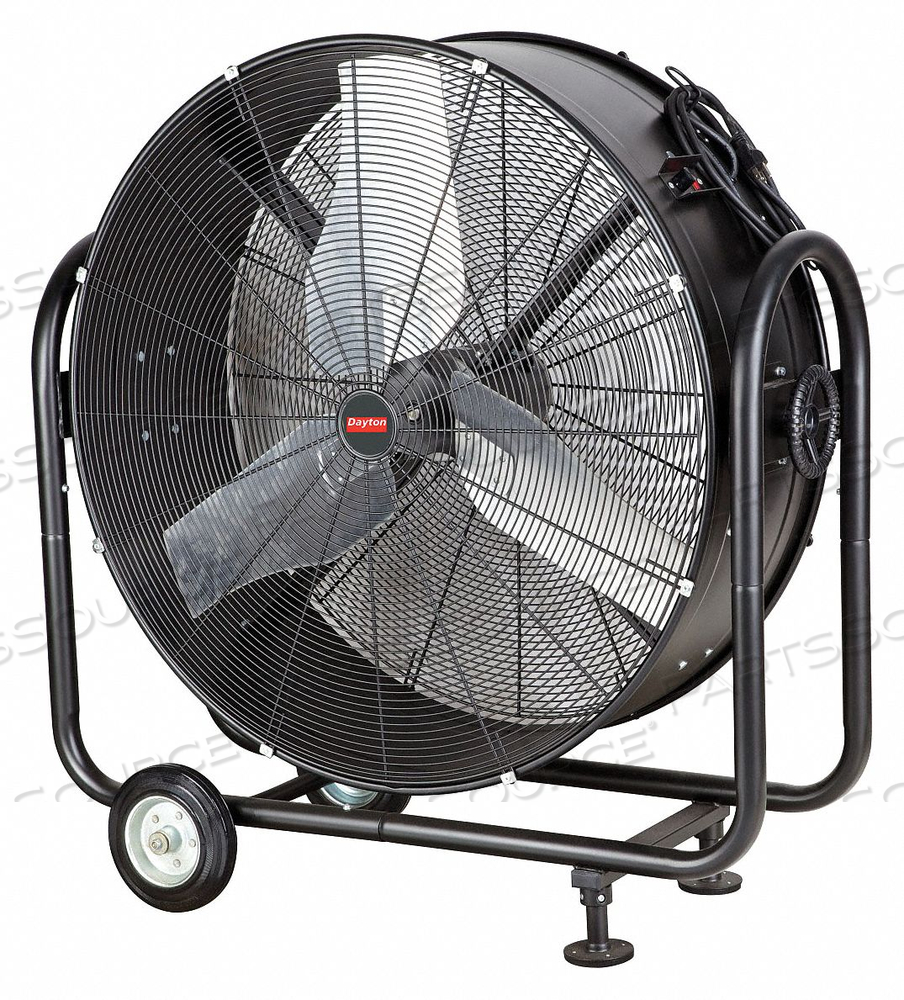

STNDRD DTY INDSTRL FAN 36 BLDE DIA 1SPD by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$960.56 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO31xl42
STNDRD DTY INDSTRL FAN 36 BLDE DIA 1SPD by DAYTON ELECTRIC MANUFACTURING CO
STNDRD DTY INDSTRL FAN 36 BLDE DIA 1SPD by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 31XL42
STNDRD DTY INDSTRL FAN 36 BLDE DIA 1SPD by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$960.56 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 31XL42 Key Specs
Item
STNDRD DTY INDSTRL FAN 36 BLDE DIA 1SPD
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
31XL42
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Air Flow
15,000 cfm
Air Velocity @ 10 Ft.
650 fpm
Air Velocity @ 20 Ft.
544 fpm
Air Velocity @ 40 Ft.
330 fpm
Air Velocity @ 60 Ft.
195 fpm
Amps
0.2/5.2
Assembly
Assembly Required
Bearing Type
Ball
Blade Diameter
36 in
Blade Material
Aluminum
Color
Black
Country of Origin
China
Depth
20 in
Drive Type
Direct Drive
Environmental Applications
Industrial
Fan Cord Length
9 ft
Fan Housing Material
Steel
Fan Mounting Location
Floor
Features
Variable Speed Motor
Guard Material
Steel
Head Tilt Adjustment
360 Degrees
Height
45 1/4 in
Height Adjustment
Fixed Height
Hz
60 Hz
Includes
8 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
Max. Ambient Temp.
120 Degrees F
Motor Enclosure
Totally Enclosed Air-Over
Motor HP
1/2 hp
Motor Insulation
Class A
Motor Type
Brushless DC (ECM)
NEMA Plug Configuration
5-15P
Number of Blades
3
Number of Speeds
Variable
Oscillation
Non-Oscillating
Phase
1
RPM
150/850
Shaft Dia.
25/32 in
Sound Level
73 dBA
Standards
cULus Listed
Thermal Protection
Automatic Reset
Voltage
115V AC
Watts
450
Wheel Dia.
8 in
Wheel Material
Steel/Rubber
Wheeled Base
Mobile
Width
42 in
Wire Guard Finish
Polyester Powder Coated Dark Gray
