OEM#: 31TU30New OEM Original Outright

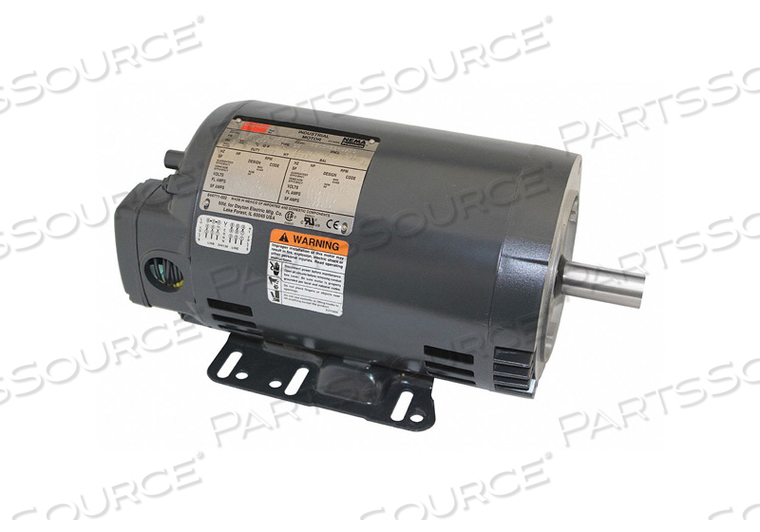

MOTOR 3-PHASE CLASS F 208-230/460V 3 HP by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$778.80 each
OEM#: 31TU30MOTOR 3-PHASE CLASS F 208-230/460V 3 HP by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$778.80 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 31TU30 Key Specs
Item
MOTOR 3-PHASE CLASS F 208-230/460V 3 HP
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
31TU30
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC060A
Country of Origin
Mexico
Duty
Continuous
Frame
143-5TC/56HCZ
Full Load Amps
7.6/3.8
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
HP
3 hp
Hz
60
Includes
Dayton Integral & Fractional HP Motor Installation Guide
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
13-7/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1750
Nominal Efficiency
89.5 %
Number of Speeds
1
Overall Length
15-1/4 in
Phase
3
RPM Group
1701-1800
RPM Range
1701-1800
Shaft Diameter
7/8 in
Shaft Length
2-1/8 in
Standards
CSA (258525), UL (E47479)
Voltage
230/460
