OEM#: 31LH39New OEM Original Outright

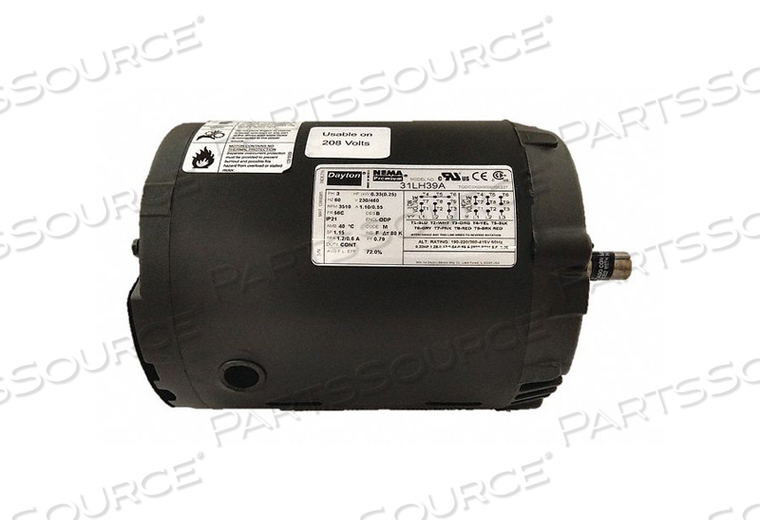

3PH 1/3HP 3510 208-230/460 72.0 by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$307.64 each
OEM#: 31LH393PH 1/3HP 3510 208-230/460 72.0 by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$307.64 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 31LH39 Key Specs
Item
3PH 1/3HP 3510 208-230/460 72.0
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
31LH39
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
56C
Full Load Amps
1.1/0.6
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
HP
1/3 hp
Hz
60
Includes
MIMI 8S470A & Shaft Key
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
6-29/32 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
Premium Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Face
Motor Service Factor
1.35
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3510
Nominal Efficiency
72 %
Number of Speeds
1
Overall Length
10-5/16 in
Phase
3
RPM Group
3001-3600
RPM Range
3001-3600
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CE, CSA, UL
Voltage
230/460
