OEM#: 2Z817New OEM Original Outright

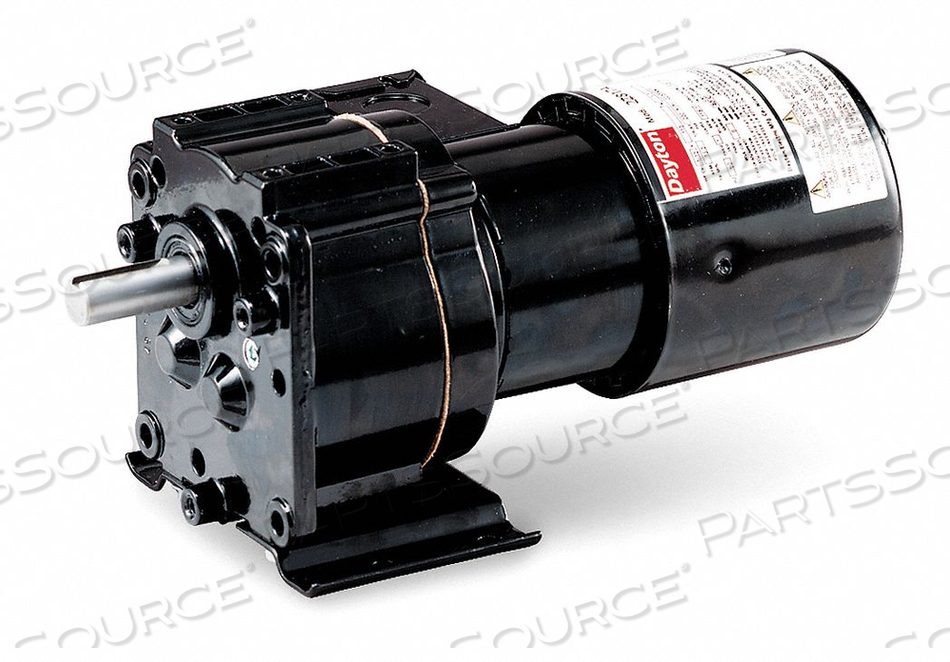

AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE SPLIT-PHASE, MOTOR ENCLOSURE TOTALLY ENCLOSED FAN-COOLED, NAMEPLATE SPEED 14 RPM, MAXIMU by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$910.55 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO2z817
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE SPLIT-PHASE, MOTOR ENCLOSURE TOTALLY ENCLOSED FAN-COOLED, NAMEPLATE SPEED 14 RPM, MAXIMU by DAYTON ELECTRIC MANUFACTURING CO
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE SPLIT-PHASE, MOTOR ENCLOSURE TOTALLY ENCLOSED FAN-COOLED, NAMEPLATE SPEED 14 RPM, MAXIMU by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 2Z817
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE SPLIT-PHASE, MOTOR ENCLOSURE TOTALLY ENCLOSED FAN-COOLED, NAMEPLATE SPEED 14 RPM, MAXIMU by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$910.55 each

AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE SPLIT-PHASE, MOTOR ENCLOSURE TOTALLY ENCLOSED FAN-COOLED, NAMEPLATE SPEED 14 RPM, MAXIMUM TORQUE 200 IN-LB, OVERHUNG LOAD CAPACITY 175 FT-LB, ROTATION CW/CCW, OUTPUT SHAFT HEIGHT 3.5 IN, MOUNTING ORIENTATION ANY ANGLE, OPERATING VOLTAGE 115V AC, INVERTER RATED NO, GEAR RATIO 118:1, BRAKE TYPE NONE, SHAFT ORIENTATION PARALLEL, AGMA GEAR CLASS CLASS 9

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 2Z817 Key Specs
Item
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE SPLIT-PHASE, MOTOR ENCLOSURE TOTALLY ENCLOSED FAN-COOLED, NAMEPLATE SPEED 14 RPM, MAXIMU
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
2Z817
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearings
Heavy Duty Needle Roller and Thrust Balls on Case, Ball on Motor
Country of Origin
USA
Full Load Amps
1.5
Gear Case Material
Die Cast Aluminum
Gear Material
Hardened Steel
Gear Ratio
118:1
Gear Type
Helical First Stage/Subsequent Stages Spur/AGMA Class 9
Gearmotor Brake Type
None
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Mounting Position
All Angle
Gearmotor Phase
1
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Parallel
Gearmotor Shaft Type
Single
Gearmotor Type
AC Gearmotor
Gearmotor Voltage
115V AC
Gears
Hardened Steel, 1st Stage Helical, Subsequent Stages Spur, AGMA Class 9
Housing
Die Cast Aluminum
Hz
60 Hz
Input HP
1/15 hp
Length Less Shaft
9 7/8 in
Lubrication
Permanent Heavy Duty Gear Oil
Max. Ambient Temp.
40 Degrees C
Max. Torque
200.0 in-lb
Motor Type
Split-Phase
Nameplate RPM
14 RPM
Number of Brake Discs Required
1
Overhung Load
175 lb
Seals
Lip Type on Input and Output Shaft
Shaft Dia. (Dimension U)
5/8"
Shaft Length (Dimension V)
1.5"
Standards
UL Recognized, C-UL Recognized
Thermal Protection
None
