OEM#: 2RDZ3New OEM Original Outright

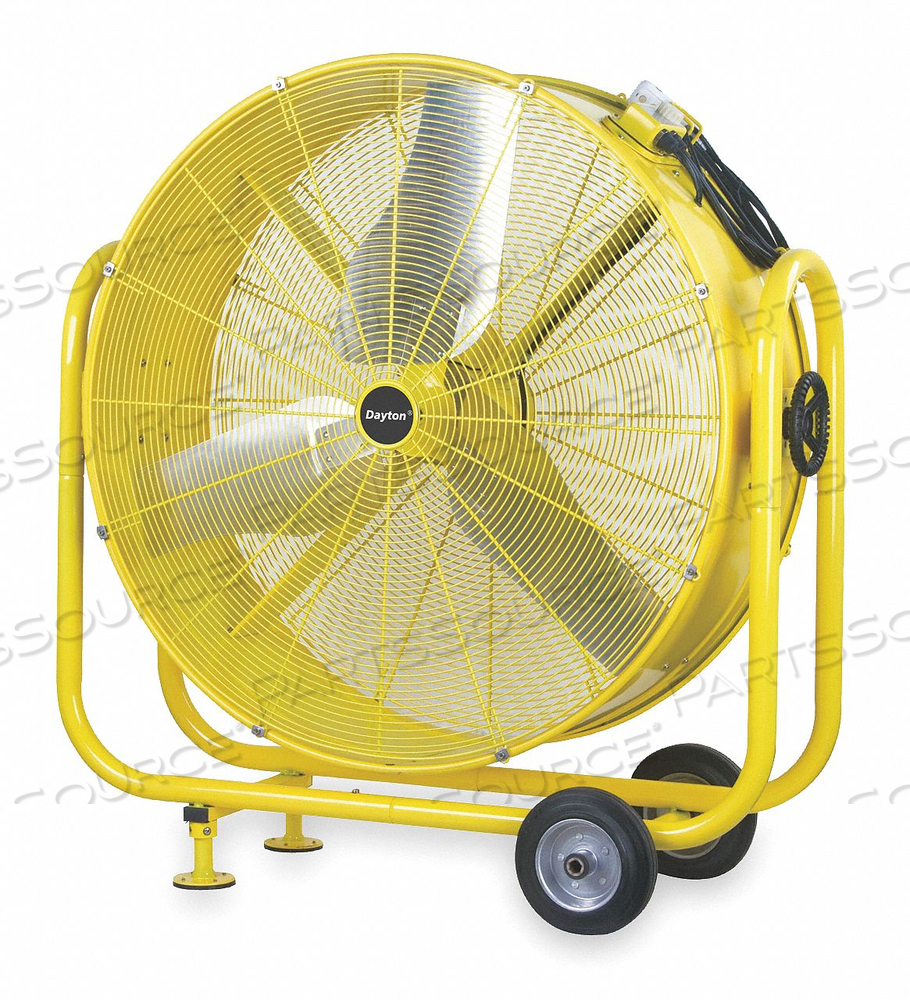

HIGH-VISIBILITY INDUSTRIAL FAN, BLADE DIA. 36 IN, MOBILE, NON-OSCILLATING, 2 SPEEDS, VOLTAGE 120V AC, 1 PHASE, CFM HIGH 12,250, CFM LOW 8350 by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$940.66 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO2rdz3
HIGH-VISIBILITY INDUSTRIAL FAN, BLADE DIA. 36 IN, MOBILE, NON-OSCILLATING, 2 SPEEDS, VOLTAGE 120V AC, 1 PHASE, CFM HIGH 12,250, CFM LOW 8350 by DAYTON ELECTRIC MANUFACTURING CO
HIGH-VISIBILITY INDUSTRIAL FAN, BLADE DIA. 36 IN, MOBILE, NON-OSCILLATING, 2 SPEEDS, VOLTAGE 120V AC, 1 PHASE, CFM HIGH 12,250, CFM LOW 8350 by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 2RDZ3
HIGH-VISIBILITY INDUSTRIAL FAN, BLADE DIA. 36 IN, MOBILE, NON-OSCILLATING, 2 SPEEDS, VOLTAGE 120V AC, 1 PHASE, CFM HIGH 12,250, CFM LOW 8350 by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$940.66 each

HIGH-VISIBILITY INDUSTRIAL FAN, BLADE DIA. 36 IN, MOBILE, NON-OSCILLATING, 2 SPEEDS, VOLTAGE 120V AC, 1 PHASE, CFM HIGH 12,250, CFM LOW 8350, AIR VELOCITY @ 20 FT. 490/370 FPM, MOTOR HP 1/2 HP, MOTOR RPM 825/650, OPERATING AMPS 5.3/4.9, FAN MOUNTING LOCATION FLOOR, FAN ACCESSORY STYLE OUTDOOR, FAN RPM 825/650, MAX. AMBIENT TEMP. 104 DEGREES F, HZ 60 HZ, WATTS 615/515, MOTOR TYPE PERMANENT SPLIT CAPACITOR, DRIVE TYPE DIRECT DRIVE, OUTSIDE DIA. 41

Ready to ship
Asset Information
warning

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.

Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 2RDZ3 Key Specs
Item
HIGH-VISIBILITY INDUSTRIAL FAN, BLADE DIA. 36 IN, MOBILE, NON-OSCILLATING, 2 SPEEDS, VOLTAGE 120V AC, 1 PHASE, CFM HIGH 12,250, CFM LOW 8350
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
2RDZ3
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Air Flow
8,350/12,250 cfm
Air Velocity @ 20 Ft.
490/370 fpm
Air Velocity @ 40 Ft.
260/220 fpm
Air Velocity @ 60 Ft.
210/80 fpm
Amps
5.3/4.9
Assembly
Assembly Required
Bearing Type
Sealed Ball
Blade Diameter
36 in
Blade Material
Aluminum
Color
Safety Yellow
Country of Origin
China
Depth
15 in
Drive Type
Direct Drive
Environmental Applications
Industrial
Fan Cord Length
9 ft
Fan Housing Material
Steel
Fan Mounting Location
Floor
Guard Material
Galvanized Steel
Head Tilt Adjustment
50 Degrees Up to 10 Degrees Down
Height
43 in
Height Adjustment
Fixed Height
Hz
60 Hz
Includes
8 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
Max. Ambient Temp.
104 Degrees F
Motor Enclosure
Totally Enclosed Air-Over
Motor HP
1/2 hp
Motor Insulation
Class B
Motor Type
Permanent Split Capacitor
NEMA Plug Configuration
5-15P with GFCI
Number of Blades
3
Number of Conductors
3
Number of Speeds
2
Oscillation
Non-Oscillating
Phase
1
RPM
825/650
Shaft Dia.
5/8 in
Standards
cULus Listed
Thermal Protection
Automatic Reset
Voltage
120V AC
Watts
615/515
Wheel Dia.
8 in
Wheel Material
Steel/Rubber
Wheeled Base
Mobile
Width
43 in
Wire Guard Finish
Polyester Powder Coated Safety Yellow
