OEM#: 2N983New OEM Original Outright

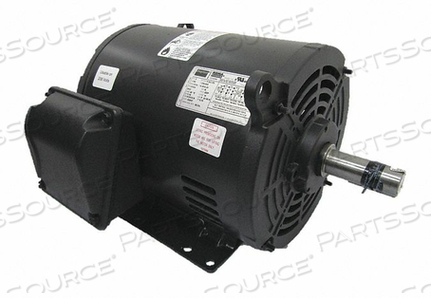

MTR 3 PH 3 HP 1740 230/4600V EFF 89.5 by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$1,085.21 each
OEM#: 2N983MTR 3 PH 3 HP 1740 230/4600V EFF 89.5 by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$1,085.21 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 2N983 Key Specs
Item
MTR 3 PH 3 HP 1740 230/4600V EFF 89.5
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
2N983
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Duty
Continuous
Frame
213/5
Full Load Amps
7.9/3.9
HP
3 hp
Hz
60
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
13-13/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Steel
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1740
Nominal Efficiency
89.5 %
Number of Speeds
1
Overall Length
16-13/16 in
Phase
3
RPM Group
1701-1800
RPM Range
1701-1800
Shaft Diameter
1-1/8 in
Shaft Length
3 in
Standards
CE, CSA, UL
Voltage
230/460
