OEM#: 2N944New OEM Original Outright

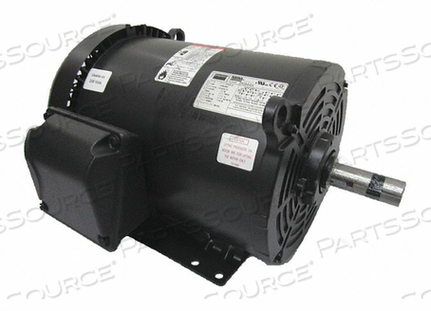

MTR 3 PH 3 HP 1170 208-230/460V 89.5 by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$1,280.32 each
OEM#: 2N944MTR 3 PH 3 HP 1170 208-230/460V 89.5 by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$1,280.32 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 2N944 Key Specs
Item
MTR 3 PH 3 HP 1170 208-230/460V 89.5
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
2N944
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Duty
Continuous
Frame
213/5
Full Load Amps
8.9/4.5
HP
3 hp
Hz
60
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
15-1/2 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Steel
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1170
Nominal Efficiency
89.5 %
Number of Speeds
1
Overall Length
19-1/4 in
Phase
3
RPM Group
1101-1200
RPM Range
1101-1200
Shaft Diameter
1-1/8 in
Shaft Length
3 in
Standards
CE, CSA (264511), UL (E47479)
Voltage
208-230/460
