OEM#: 2LYT6New OEM Original Outright

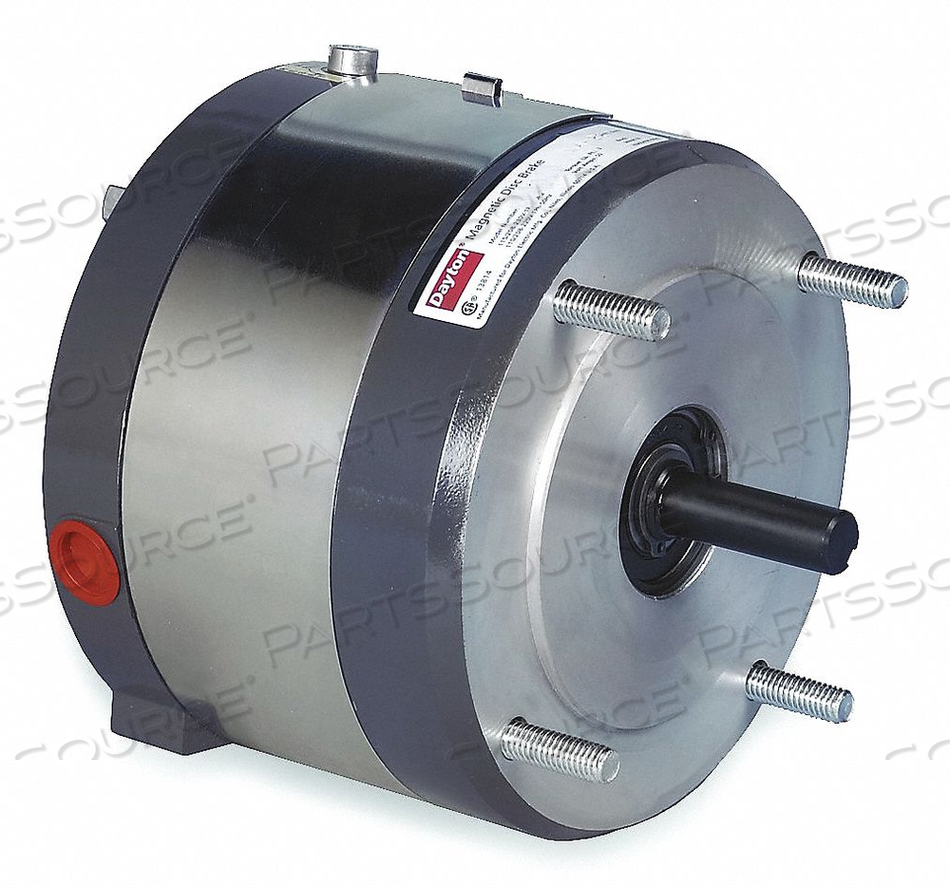

BRAKE, CLUTCH/BRAKE TYPE DOUBLE C-FACE MAGNETIC DISC BRAKE, COIL VOLTAGE 95/174-190V AC @ 50 HZ, 115/208-230V AC @ 60 HZ, OPERATING VOLTAGE by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$1,527.29 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO2lyt6
BRAKE, CLUTCH/BRAKE TYPE DOUBLE C-FACE MAGNETIC DISC BRAKE, COIL VOLTAGE 95/174-190V AC @ 50 HZ, 115/208-230V AC @ 60 HZ, OPERATING VOLTAGE by DAYTON ELECTRIC MANUFACTURING CO
BRAKE, CLUTCH/BRAKE TYPE DOUBLE C-FACE MAGNETIC DISC BRAKE, COIL VOLTAGE 95/174-190V AC @ 50 HZ, 115/208-230V AC @ 60 HZ, OPERATING VOLTAGE by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 2LYT6
BRAKE, CLUTCH/BRAKE TYPE DOUBLE C-FACE MAGNETIC DISC BRAKE, COIL VOLTAGE 95/174-190V AC @ 50 HZ, 115/208-230V AC @ 60 HZ, OPERATING VOLTAGE by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$1,527.29 each

BRAKE, CLUTCH/BRAKE TYPE DOUBLE C-FACE MAGNETIC DISC BRAKE, COIL VOLTAGE 95/174-190V AC @ 50 HZ, 115/208-230V AC @ 60 HZ, OPERATING VOLTAGE 115/208-230V AC, ENCLOSURE TYPE DRIPPROOF, STATIC TORQUE 10 FT-LB, HORSEPOWER @ RPM 3 HP @ 1725 RPM, 5 HP @ 3450 RPM, SHAFT DIAMETER 5/8 IN, MAXIMUM SPEED 3,450 RPM, MOUNTING LOCATION NEMA C-FACE FLANGES ON MOTORS AND GEAR REDUCERS, FOR USE WITH SINGLE AND THREE PHASE GENERAL PURPOSE C-FACE MOTORS, INCLUDES H

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 2LYT6 Key Specs
Item
BRAKE, CLUTCH/BRAKE TYPE DOUBLE C-FACE MAGNETIC DISC BRAKE, COIL VOLTAGE 95/174-190V AC @ 50 HZ, 115/208-230V AC @ 60 HZ, OPERATING VOLTAGE
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
2LYT6
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Agency Compliance
CSA
Ambient (C)
40 Degrees C
Amps Holding
0.34/0.17
Application
Stops And Holds Rotating Loads On Conveyors, Crane Trolleys And High Speed Doors
Brake Mouting Position
Horizontal
Coil Volts
115/208-230V AC Or 95/174-190V AC
Converts
Converts NEMA C-Face Motors And Gear Reducers To A Geared Brake Motor
Country of Origin
USA
Dia. (In.)
6 7/8 in
Duty
Continuous
Enclosure
Dripproof
Finish
Gray Enamel Paint
For Use With
Single And Three Phase General Purpose C-Face Motors
Function
Spring Set Brake With Automatic Reset Release
Hz
60/50
Includes
Hardware
Inrush Amps
2.43/1.22
Length (In.)
4.875 in
Lever Type
Manual Release
Max. HP @ 1725 RPM
3 hp
Max. HP @ 3450 RPM
5 hp
Max. RPM
3,450 RPM
Mounts On
NEMA C-Face Flanges On Motors And Gear Reducers
NEMA/IEC Frame
56C/140TC
Phase
Single
Power Lead Length (In.)
15
Series
60 Series
Service Factor
1.0
Shaft Dia. (In.)
5/8 in
Static Torque (Ft.-Lb.)
10
Type
Double C-Face Magnetic Disc
Voltage @ 50 Hz
95/174-190
Voltage @ 60 Hz
115/208-230
