OEM#: 2H602New OEM Original Outright

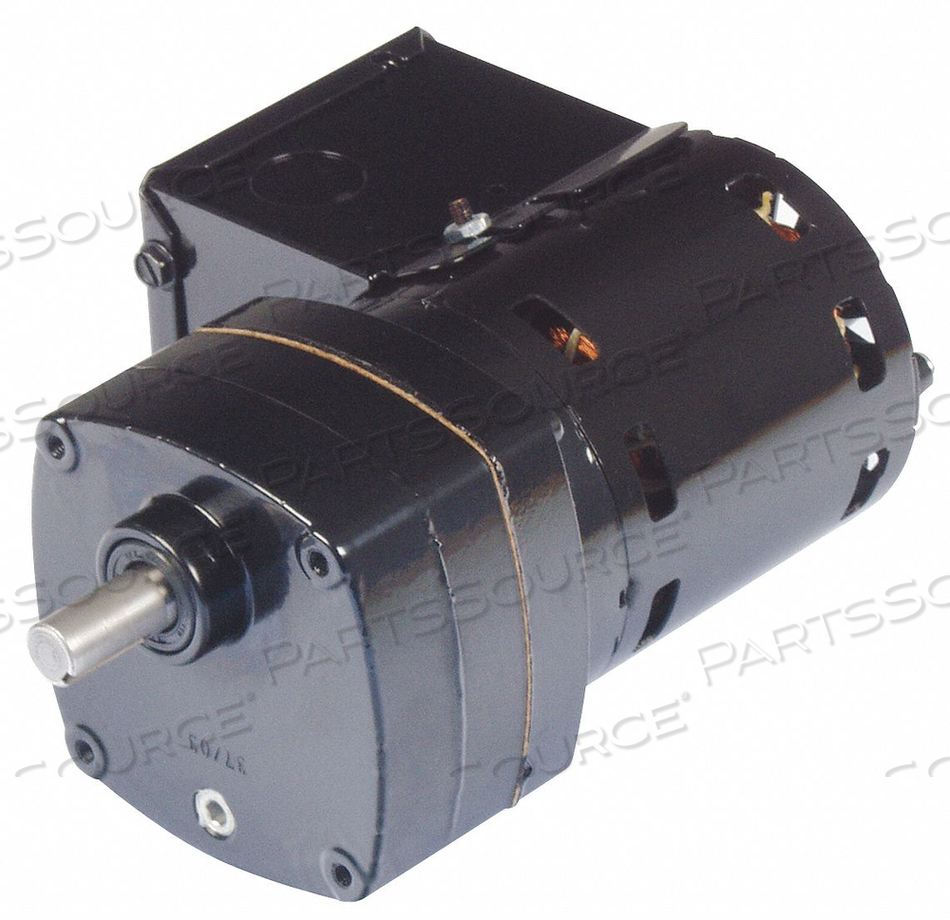

AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE PERMANENT SPLIT CAPACITOR, MOTOR ENCLOSURE TOTALLY ENCLOSED NONVENTILATED, NAMEPLATE SPE by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$877.42 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO2h602
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE PERMANENT SPLIT CAPACITOR, MOTOR ENCLOSURE TOTALLY ENCLOSED NONVENTILATED, NAMEPLATE SPE by DAYTON ELECTRIC MANUFACTURING CO
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE PERMANENT SPLIT CAPACITOR, MOTOR ENCLOSURE TOTALLY ENCLOSED NONVENTILATED, NAMEPLATE SPE by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 2H602
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE PERMANENT SPLIT CAPACITOR, MOTOR ENCLOSURE TOTALLY ENCLOSED NONVENTILATED, NAMEPLATE SPE by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$877.42 each

AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE PERMANENT SPLIT CAPACITOR, MOTOR ENCLOSURE TOTALLY ENCLOSED NONVENTILATED, NAMEPLATE SPEED 17 RPM, MAXIMUM TORQUE 150 IN-LB, OVERHUNG LOAD CAPACITY 150 FT-LB, ROTATION CW/CCW, MOUNTING ORIENTATION ANY ANGLE, OPERATING VOLTAGE 115/230V AC, INVERTER RATED NO, GEAR RATIO 96:1, BRAKE TYPE NONE, SHAFT ORIENTATION PARALLEL, INCLUDES CAPACITOR CAPACITOR INCLUDED

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 2H602 Key Specs
Item
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE PERMANENT SPLIT CAPACITOR, MOTOR ENCLOSURE TOTALLY ENCLOSED NONVENTILATED, NAMEPLATE SPE
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
2H602
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearings
Needle Throughout, Ball on Motor
Country of Origin
USA
Full Load Amps
0.56/0.29
Gear Case Material
Die Cast Aluminum
Gear Material
Hardened Steel
Gear Ratio
96:1
Gear Type
Helical First Stage/Subsequent Stages Spur
Gearmotor Brake Type
None
Gearmotor Enclosure
Totally Enclosed Nonventilated
Gearmotor Mounting Position
All Angle
Gearmotor Phase
1
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Parallel
Gearmotor Shaft Type
Single
Gearmotor Type
AC Gearmotor
Gearmotor Voltage
115/230V AC
Gears
Hardened Steel, 1st Stage Helical, Subsequent Stages Spur
Housing
Die Cast Aluminum
Hz
60/50 Hz
Input HP
1/20 hp
Length Less Shaft
6 3/4 in
Lubrication
Permanent Heavy Fluid Gear Oil
Max. Ambient Temp.
40 Degrees C
Max. Torque
150.0 in-lb
Motor Type
PSC
Nameplate RPM
17 RPM
Overhung Load
150 lb
Seals
Spring Loaded Lip Type on Input and Output Shaft
Shaft Dia. (Dimension U)
1/2"
Shaft Length (Dimension V)
1"
Standards
UL Recognized, C-UL Recognized, CE Certified
Thermal Protection
None
