OEM#: 2N866New OEM Original Outright

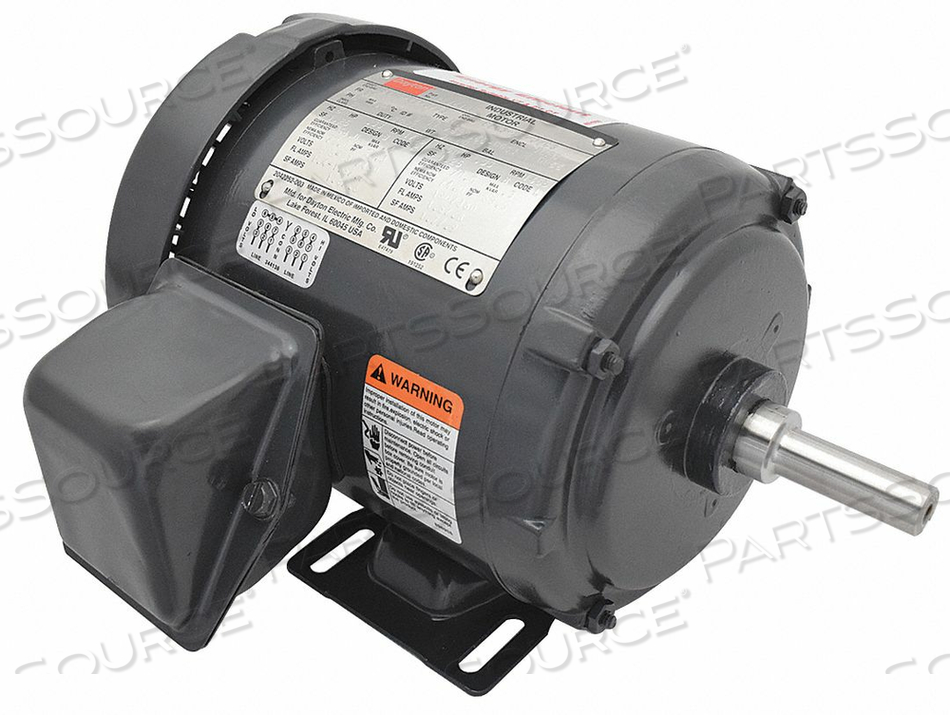

MTR 3 PH 3/4HP 1750 230/460 EFF 75.5 by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$508.53 each
OEM#: 2N866MTR 3 PH 3/4HP 1750 230/460 EFF 75.5 by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$508.53 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 2N866 Key Specs
Item
MTR 3 PH 3/4HP 1750 230/460 EFF 75.5
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
2N866
Condition
New OEM Original
Returnable
Yes
Warranty
30 Day
Duty
Continuous
Frame
56
Full Load Amps
2.7/1.3
HP
3/4 hp
Hz
60/50
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
9-7/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1750
Nominal Efficiency
78.5 %
Number of Speeds
1
Overall Length
11-11/16 in
Phase
3
RPM Group
1701-1800
RPM Range
1701-1800
Shaft Diameter
5/8 in
Shaft Length
2-1/4 in
Standards
CE, CSA Certified (191252), UL Recognized (E47479)
Voltage
208-230/460
