OEM#: 2M191New OEM Original Outright

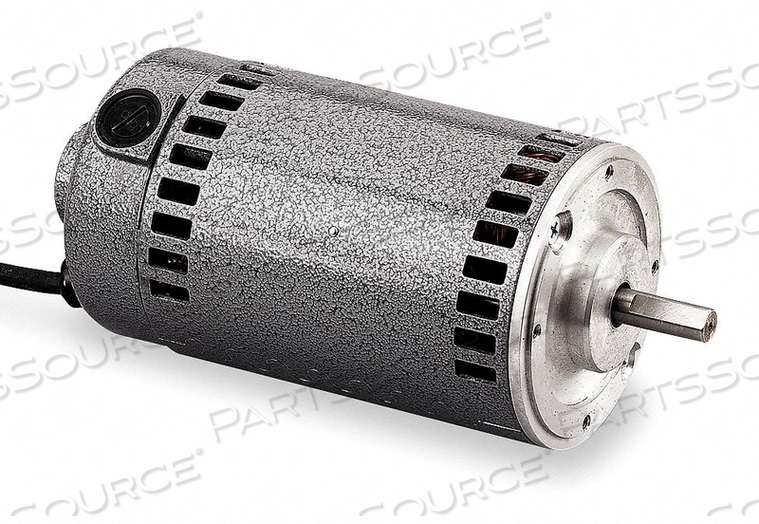

UNIVERSAL AC/DC MTR 1HP 10 000 RPM 115V by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$517.15 each
OEM#: 2M191UNIVERSAL AC/DC MTR 1HP 10 000 RPM 115V by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$517.15 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 2M191 Key Specs
Item
UNIVERSAL AC/DC MTR 1HP 10 000 RPM 115V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
2M191
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Used in Appliances, Power Tools, Outdoor Equipment, Food Processing Equipment, Gearmotors, Blowers, Pumps and Other Applications Where High Horsepower Output and Small Size are Required
Average Brush Life
300 hr.
Body Diameter
3-7/8 in
Country of Origin
USA
Frame
Non-Standard
Full Load Amps
12.1
HP
1
Hz
60
Ins. Class
A
Length Less Shaft
3-7/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
Universal AC/DC Motor
Motor Bearings
Ball
Motor Design
Universal AC/DC
Motor Enclosure Design
Open
Motor Mounting Position
All Angle
Motor Mounting Type
Face
Motor Service Factor
1
Motor Shaft Rotation
CCWSE
Motor Thermal Protection
None
Mounting Holes
(4) #10-32
Nameplate RPM
10,000
O.C. Mounting
3 1/4 x 3 1/4 in
Overall Length
3-7/8 in
Phase
1
Shaft Diameter
3-7/8 in
Shaft Length
1-1/4 in
Standards
UL Recognized
Voltage
115
