OEM#: 23228New OEM Original Outright

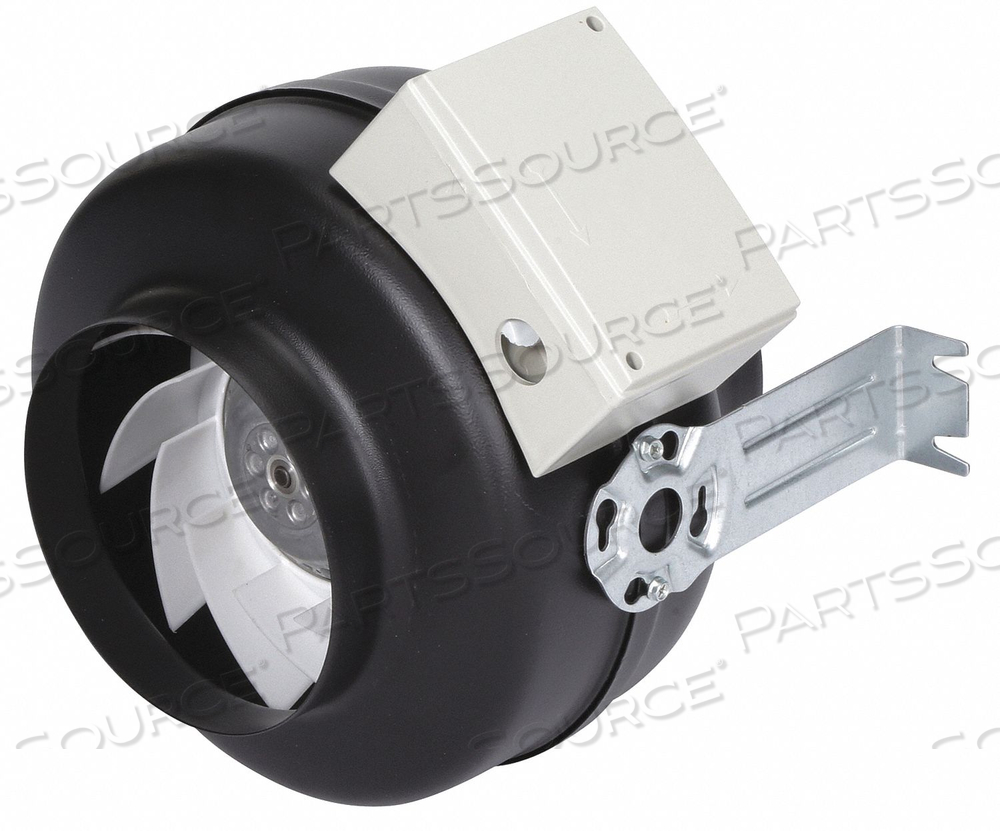

STEEL 9 W INLINE FAN FOR 10 DIA DUCT by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$394.73 each
OEM#: 23228STEEL 9 W INLINE FAN FOR 10 DIA DUCT by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$394.73 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 23228 Key Specs
Item
STEEL 9 W INLINE FAN FOR 10 DIA DUCT
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
23228
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Type
Ball
CFM @ 0.000-In. SP
630
CFM @ 0.100-In. SP
570
CFM @ 0.125-In. SP
569
CFM @ 0.200-In. SP
507
CFM @ 0.250-In. SP
446
CFM @ 0.375-In. SP
382
CFM @ 0.400-In. SP
319
CFM @ 0.450-In. SP
319
CFM @ 0.500-In. SP
249
CFM @ 0.600-In. SP
191
CFM @ 0.750-In. SP
126
CFM @ 0.800-In. SP
63
Country of Origin
Italy
Fits Duct Dia.
10 in
Flange Width
1 in
Housing Dia.
13 in
Housing Finish
Black Epoxy Coating
Housing Material
Steel
Hz
60
Includes
Mounting Bracket
Inlet and Outlet Dia.
10 in
Length
10 in
Max. Amps
1.7 A
Max. Inlet Temp.
104 Degrees F
Max. Wattage
197
Motor Enclosure
Totally Enclosed
Motor RPM
2470
Mounting Position
Horizontal or Vertical
Number of Speeds
1
Phase
1
Speed Control
Yes
Standards
C-UL-US
Voltage
120
Width
9 in
