OEM#: 21XU04ANew OEM Original Outright

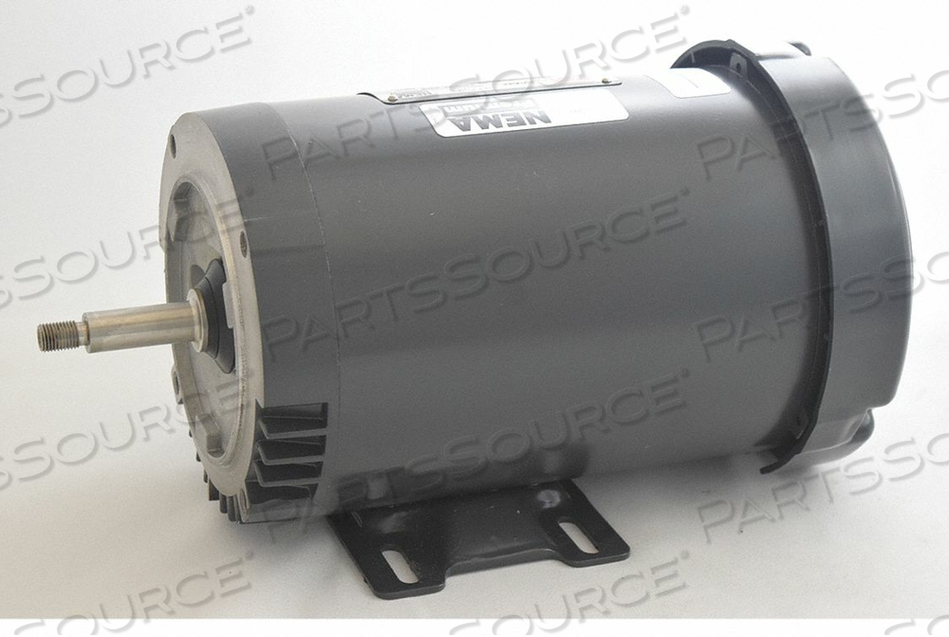

MOTOR 2 HP 3 500 RPM 56J 208-230/460V by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$1,133.00 each
OEM#: 21XU04AMOTOR 2 HP 3 500 RPM 56J 208-230/460V by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$1,133.00 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 21XU04A Key Specs
Item
MOTOR 2 HP 3 500 RPM 56J 208-230/460V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
21XU04A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
6-9/16 in
Country of Origin
Mexico
Duty
Continuous
Frame
56J
Full Load Amps
5.4-4.9/2.4
HP
2
Hz
60/50
Includes
Shaft Slinger
Ins. Class
F
Max Ambient Temperature
50 Degrees C
Motor Application
Pump
Motor Bearings
Ball
Motor Design
3-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Position
Horizontal or Vertical Shaft Down
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Shaft Design
Threaded
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Jet Pump
Motor Thermal Protection
None
Nameplate RPM
3500
Nominal Efficiency
86.5 %
Overall Length
13 9/16 in
Phase
3
Shaft Diameter
5/8 in
Shaft Length
2-9/16 in
Shaft Material
Stainless Steel
Standards
CSA Certified (258525), UL Recognized (E47479)
Voltage
208-230/460
Voltage Compatibility
208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
