OEM#: 1YNW6New OEM Original Outright

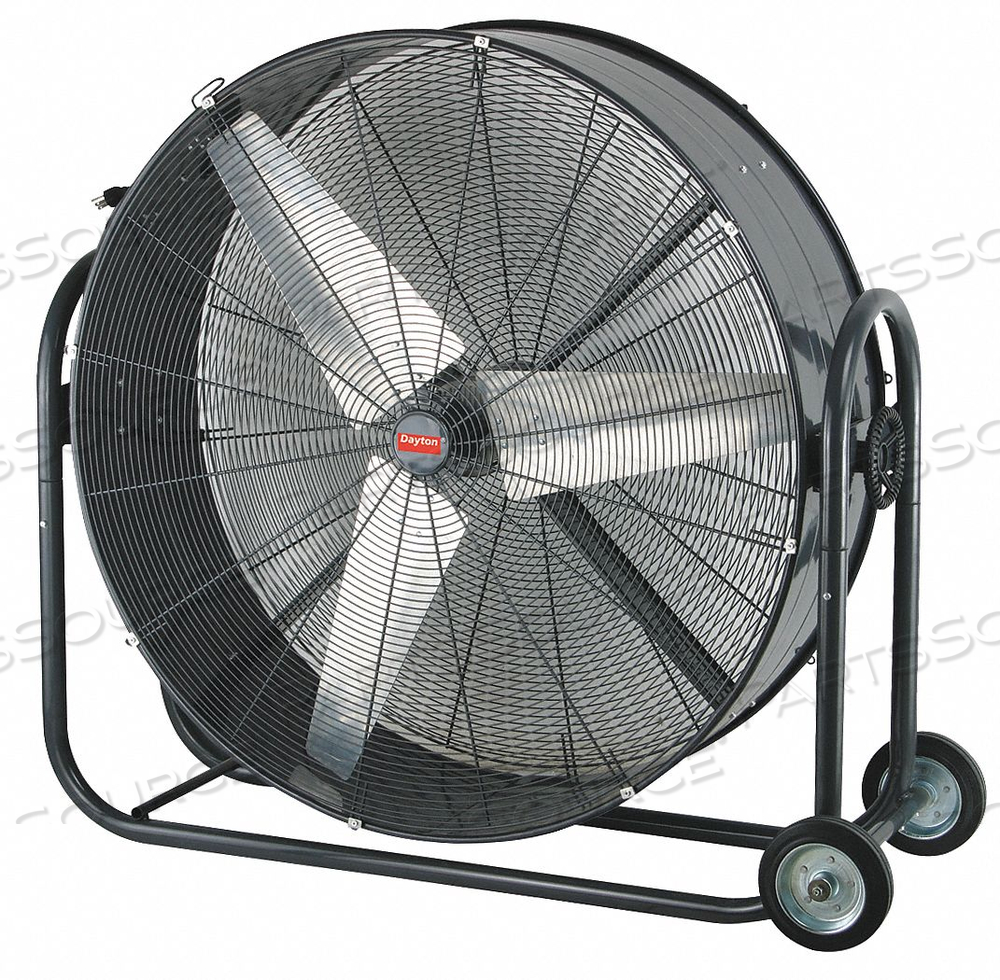

STANDARD-DUTY INDUSTRIAL FAN, BLADE DIA. 42 IN, MOBILE, NON-OSCILLATING, 2 SPEEDS, VOLTAGE 120V AC, 1 PHASE, CFM HIGH 15,000, CFM LOW 9000, by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$1,454.55 each
$1,637.47 Savings: $182.92 (11%)
Ready to ship
HomeDAYTON ELECTRIC MANUFACTURING CO1ynw6
STANDARD-DUTY INDUSTRIAL FAN, BLADE DIA. 42 IN, MOBILE, NON-OSCILLATING, 2 SPEEDS, VOLTAGE 120V AC, 1 PHASE, CFM HIGH 15,000, CFM LOW 9000, by DAYTON ELECTRIC MANUFACTURING CO
STANDARD-DUTY INDUSTRIAL FAN, BLADE DIA. 42 IN, MOBILE, NON-OSCILLATING, 2 SPEEDS, VOLTAGE 120V AC, 1 PHASE, CFM HIGH 15,000, CFM LOW 9000, by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 1YNW6
STANDARD-DUTY INDUSTRIAL FAN, BLADE DIA. 42 IN, MOBILE, NON-OSCILLATING, 2 SPEEDS, VOLTAGE 120V AC, 1 PHASE, CFM HIGH 15,000, CFM LOW 9000, by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$1,454.55 each
$1,637.47 Savings: $182.92 (11%)

STANDARD-DUTY INDUSTRIAL FAN, BLADE DIA. 42 IN, MOBILE, NON-OSCILLATING, 2 SPEEDS, VOLTAGE 120V AC, 1 PHASE, CFM HIGH 15,000, CFM LOW 9000, AIR VELOCITY @ 20 FT. 480/370 FPM, MOTOR HP 1/2 HP, MOTOR RPM 825/600, OPERATING AMPS 5.5/4.9, FAN MOUNTING LOCATION FLOOR, FAN ACCESSORY STYLE STANDARD, FAN RPM 825/600, SOUND LEVEL 75 DBA, MAX. AMBIENT TEMP. 104 DEGREES F, HZ 60 HZ, WATTS 592/499, MOTOR TYPE PERMANENT SPLIT CAPACITOR, DRIVE TYPE DIRECT DRIV

Ready to ship
Asset Information
warning

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.

Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 1YNW6 Key Specs
Item
STANDARD-DUTY INDUSTRIAL FAN, BLADE DIA. 42 IN, MOBILE, NON-OSCILLATING, 2 SPEEDS, VOLTAGE 120V AC, 1 PHASE, CFM HIGH 15,000, CFM LOW 9000,
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
1YNW6
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Air Flow
9,000/15,000 cfm
Air Velocity @ 20 Ft.
480/370 fpm
Air Velocity @ 40 Ft.
325/210 fpm
Air Velocity @ 60 Ft.
230/80 fpm
Amps
5.5/4.9
Assembly
Assembly Required
Bearing Type
Ball
Blade Diameter
42 in
Blade Material
Aluminum
Color
Dark Gray
Country of Origin
China
Depth
20 1/4 in
Drive Type
Direct Drive
Environmental Applications
Industrial
Fan Cord Length
9 ft
Fan Housing Material
Steel
Fan Mounting Location
Floor
Guard Material
Steel
Head Tilt Adjustment
360 Degrees
Height
46 5/16 in
Height Adjustment
Fixed Height
Hz
60 Hz
Includes
7 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
Max. Ambient Temp.
104 Degrees F
Motor Enclosure
Totally Enclosed Air-Over
Motor HP
1/2 hp
Motor Insulation
Class B
Motor Type
Permanent Split Capacitor
NEMA Plug Configuration
5-15P
Number of Blades
3
Number of Conductors
3
Number of Speeds
2
Oscillation
Non-Oscillating
Phase
1
RPM
825/600
Shaft Dia.
5/8 in
Sound Level
75 dBA
Standards
cULus Listed
Thermal Protection
Automatic Reset
Voltage
120V AC
Watts
592/499
Wheel Dia.
7 in
Wheel Material
Steel/Rubber
Wheeled Base
Mobile
Width
51 1/2 in
Wire Guard Finish
Polyester Powder Coated Dark Gray
