OEM#: 1TTB6BGNew OEM Original Outright

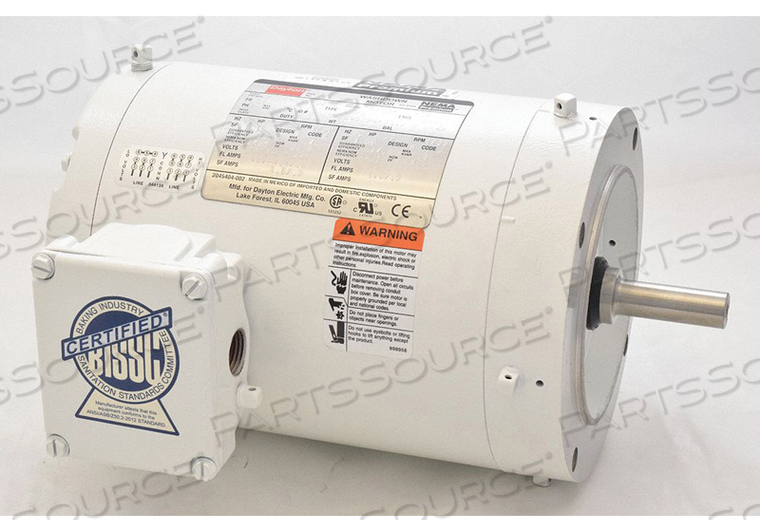

WASHDOWN MOTOR 1/2 HP 1750 56C 230/460V by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$1,882.20 each
OEM#: 1TTB6BGWASHDOWN MOTOR 1/2 HP 1750 56C 230/460V by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$1,882.20 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 1TTB6BG Key Specs
Item
WASHDOWN MOTOR 1/2 HP 1750 56C 230/460V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
1TTB6BG
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Washdown
Body Diameter
6-1/2 in
CC Number
CC030A
Conduit Box
Cast Oversized Gasketed
Country of Origin
Mexico
Drain Plugs
(4) Each End, (2) In Conduit Box
Duty
Continuous
Endshields
Cast Aluminum
Frame
56C
Full Load Amps
1.6/8
HP
1/2
Hz
60/50
Ins. Class
F
Length Less Shaft
9-3/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
Washdown
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Frame Material
Epoxy Coated Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Face
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
NEMA Design
B
Nameplate RPM
1750
Nominal Efficiency
80 %
Overall Length
11-1/4 in
Phase
3
RPM Range
1701-1800
Shaft Diameter
5/8 in
Shaft Length
2 in
Shaft Material
303 Stainless Steel
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Voltage
230/460
Voltage Compatibility
208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
