OEM#: 1LRA7New OEM Original Outright

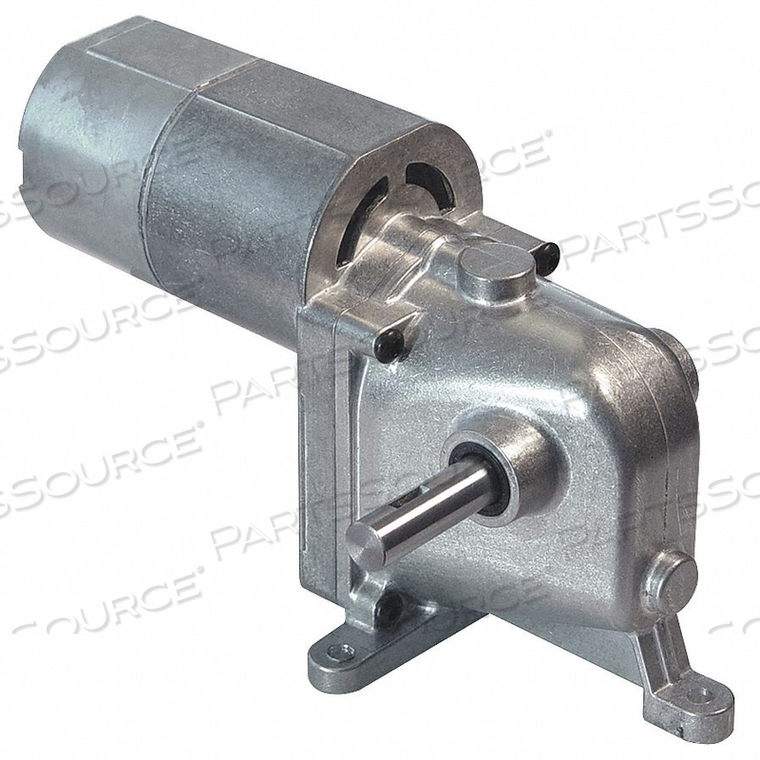

AC/DC GEARMOTOR 4.5 RPM 115V OPEN VENTED by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$486.02 each
OEM#: 1LRA7AC/DC GEARMOTOR 4.5 RPM 115V OPEN VENTED by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$486.02 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 1LRA7 Key Specs
Item
AC/DC GEARMOTOR 4.5 RPM 115V OPEN VENTED
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
1LRA7
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearings
Porous Bronze Sleeve on Case, Sleeve on Motor
Brushes
Externally Replaceable
Finish
Unpainted
Full Load Amps
1.1 A
Full Load Torque
250 in-lb
Gear Case
Die Cast Zinc
Gear Material
Input Gear Steel, Worm Hardened Steel, Output Gear Cast Iron
Gear Ratio
1714:1
Gear Type
Worm
Gearmotor Enclosure
Open
Gearmotor Mounting Position
All Angle
Gearmotor Phase
1
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Right Angle
Gearmotor Shaft Type
Single Right
Gearmotor Type
AC/DC Gearmotor
Gearmotor Voltage
115V AC/DC
Housing Material
Die Cast Zinc
Hz
60/50 Hz
Input HP
1/15
Insulation Class
B
Keyway Size Type
#404 Woodruff Key
Length Less Shaft
8 3/4 in
Lubrication
Grease Filled
Max. Ambient Temp.
40 Degrees C
Motor Type
Universal
Nameplate RPM
4.5 RPM
Overall Length
8 9/16 in
Overhung Load
100 lb
Replacement Brushes
1YNR3
Reversible Shaft Output
No
Seals
Lip Type on Output Shaft
Shaft Dia. (Dimension U)
1/2"
Shaft Length (Dimension V)
1-5/8"
Standards
UL Recognized
Thermal Protection
None
